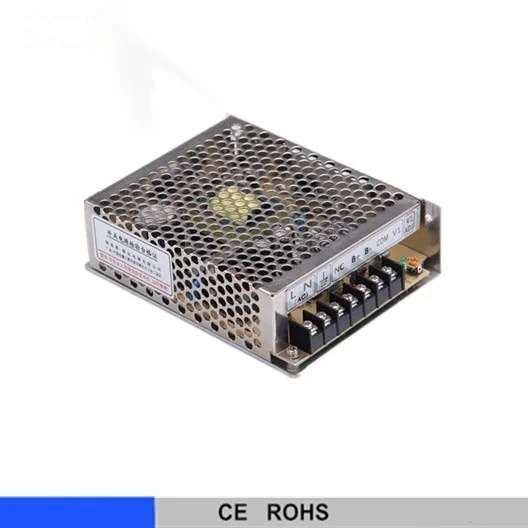

| SPECIFICATION |
| MODEL | AD-55A | AD-55B |
| OUTPUT | | |
| Output number | CH1 | CH2 | CH1 | CH2 |
| DC voltage | 13.8V | 13.4V | 27.6V | 26.5V |
| Rated Current | 3.5A | 0.23A | 1.8A | 0.16A |
| Current Range | 0~4A | -------- | 0~2A | -------- |
| Rated Power | 51.38W | 53.92W |
| Ripple & Noise | 100mVp-p | -------- | 100mVp-p | -------- |
| Voltage Adj. Range | CH1:12~14.5V | CH1:24~29V |
| Voltage Tolerance | ±1.0% | -------- | ±1.0% | -------- |
| Line Regulation | ±0.5% | -------- | ±0.5% | -------- |
| Load Regulation | ±0.5% | -------- | ±0.5% | -------- |
| Setup, Rise Time | 800ms,50ms/230VAC 1600ms,50ms/115VAC at full load |
| Hold Up Time | 80ms/230VAC 16ms/115VAC at full load |
| | |
| INPUT | |
| Voltage Range | 88~264VAC 47~63Hz; 124~370VDC |
| AC Current | 1.6A/115VAC 1A/230VAC |
| Efficiency | 71% | 74% |
| Inrush Current | Cold start 20A/115VAC 40A/230VAC |
| Leakage Current | <1mA /240VAC |
| | |
| PROTECTION | |
| Over Load | 105~150% rated output power |
| Protection type: AC Charging Mode: Hiccup mode, recovers automatically after fault condition is removed UPS Mode: Protected by internal fuse |
| Over Voltage | CH1:15.87~18.63V | CH1:31.74~37.26V |
| Protection type: Hiccup mode,recovers automatically after fault condition is removed |
| Battery Low | 9.5~11V | 20~22V |
| | |
| ENVIRONMENT | |
| Working Temp. | -10~+60°C (Refer to “Derating Curve”) |
| Working Humidity | 20~90%RH non-condensing |
| Storage Temp., Humidity | -20~+85°C,10~95%RH |
| Temp. Coefficient | ±0.03%/ °C(0~50°C )on CH1 output |
| Vibration | 10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes |
| | |
| SAFETY &EMC | |
| Safety Standards | UL60950-1, TUV EN60950-1 approved |
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation Resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25°C /70%RH |
| EMC Emission | Compliance to EN55022(CISPR22) Class B, EN61000-3-2,-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A |
| | |
| OTHERS | |
| Dimension | 159*97*38mm(L*W*H) |
| Weight | 0.5Kg |
| Packing | 24pcs/12.6Kg/0.75CUFT |
