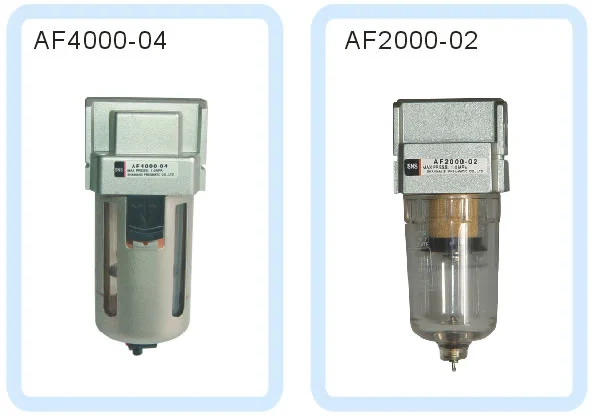

Air Filter — Cylinder And Filter Air Filter supplied by ELEHPD
Air Filter Cylinder And Filter photo 1Air Filter Cylinder And Filter photo 2Air Filter Cylinder And Filter photo 3
Electrical Items › Cylinder And Filter

Air Filter

Air Filter from the ELEHPD Cylinder And Filter range.

  • Category: Electrical Items › Cylinder And Filter
  • Model: 1357
  • Brand / OEM: ELEHPD — OEM branding available
  • Export: Worldwide, FOB Ningbo / Shanghai
Request a quotation for this Cylinder And Filter

About the Air Filter

The Air Filter is part of the ELEHPD Cylinder And Filter range. Air Filter from the ELEHPD Cylinder And Filter range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

How to specify the right Cylinder And Filter

  1. Calculate the panel heat load in watts before selecting airflow
  2. Match the airflow to the required internal temperature rise
  3. Choose the filter class for the dust level on site
  4. Confirm the supply voltage and noise limit for the location

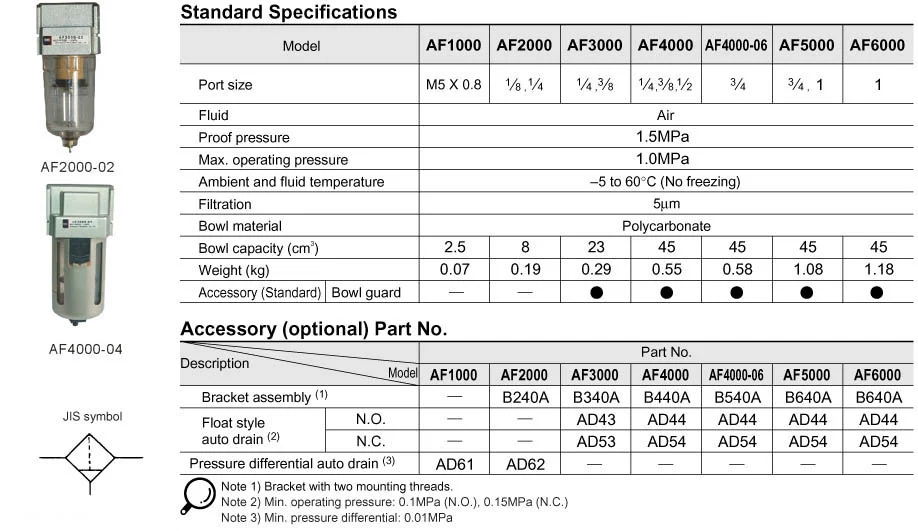

Specifications









Frequently asked questions about the Air Filter

How do I size a panel fan?

Estimate the total heat dissipation inside the enclosure, decide the acceptable internal temperature rise, then select an airflow that removes that heat. As a first pass, 1 m3/min of airflow removes roughly 55 W for a 10 K rise at sea level.

Do I need a filter with the fan?

Anywhere with airborne dust, yes. The filter keeps conductive dust off the terminals and busbars; without it, the fan simply pushes contamination through the panel.

What voltage are the fans available in?

AC and DC options exist across the family. Confirm the voltage from the specification table or send your panel supply and we will match it.

Can these be used for condensation control?

For condensation you normally want an enclosure heater plus a thermostat or hygrostat rather than a fan alone. We can quote the heater and control together with the fan.
