DX Current Transformer

About the DX Current Transformer

The DX Current Transformer is part of the ELEHPD Current Transformer range. DX Current Transformers DX Series: Model DX-20, DX-30, DX-40 are available for connecting with cable, and also available for connecting with bus bar. Maximum voltage: Frequency: Class: Short-time thermal current: Mounting methods: Window dimensions 0.66KV 50-60Hz 1.0 Ith=60Ih either by din rail (35mm) or by screws diameter 22mm (DX-20, DX-20L) 31 X 10mm (DX-30, DX-30L) 41 X 10mm (DX-40) Technical ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Industrial control panels and PLC power rails
LED drivers, signage and display power
Battery charging and DC backup systems
Motor drives, welding sets and rectifier assemblies
Instrumentation and test equipment

How to specify the right Current Transformer

Size the output current with at least 20-30 % headroom over the load
Check the input range covers the local supply, including brown-outs
Confirm the enclosure and cooling method for the panel temperature
Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

DX Current Transformers

DX Series:

Model DX-20, DX-30, DX-40 are available for connecting with cable, and also available for connecting with bus bar.

Maximum voltage:
Frequency:
Class:
Short-time thermal current:
Mounting methods:
Window dimensions

0.66KV
50-60Hz
1.0
Ith=60Ih
either by din rail (35mm) or by screws
diameter 22mm (DX-20, DX-20L)
31 X 10mm (DX-30, DX-30L)
41 X 10mm (DX-40)

Technical data & Specification:

Model	Primary/ secondary	Busbar Hole Dimension (MM)	Rated Burden (VA)	Class	Rated Voltage
DX-20	50/5A-150/5A	Ø=20mm	1.5-2.5	1.0	660V
DX-30	100/5A-500/5A	30 X 10mm	1.5-2.5	1.0	660V
DX-40	150/5A-1000/5A	40 X 10mm	3-10	1.0	660V
DX-20L	50/5A-150/5A	Ø=20mm	1.5-2.5	1.0	660V
DX-30L	100/5A-500/5A	30 X 10mm	1.5-2.5	1.0	660V

Dimension of case (mm):

Model	A	B	C	D	E
DX-20	53	28	57	66	54
DX-30	53	28	57	66	54
DX-40	71	45	73	81	65
DX-20L	53	28	57	66	54
DX-30L	53	28	57	66	54

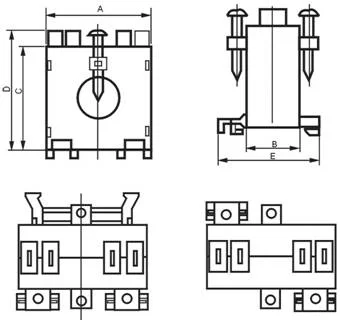

outline drawing:

Frequently asked questions about the DX Current Transformer

How much headroom should I leave on the power rating?

For continuous industrial duty plan on 20-30 % headroom above the measured load. For loads with high inrush, such as motors or capacitive input, allow more and check the surge rating rather than only the average current.

Do these units accept 110 V and 230 V mains?

Input ranges are model-specific and shown in the specification table. Where a wide-range input is available it is stated; otherwise send your mains voltage and we will match the model.

What protection features are built in?

Typical protection covers short circuit, over-current, over-voltage and thermal shutdown. The exact set is listed per model in the specification table above.

Can you supply matching DIN-rail or enclosed versions?

Open-frame, enclosed and DIN-rail variants exist across this family. Send the model you are working from and we will confirm the equivalent mounting option.
