Psc 60W

Q: How much headroom should I leave on the power rating?

For continuous industrial duty plan on 20-30 % headroom above the measured load. For loads with high inrush, such as motors or capacitive input, allow more and check the surge rating rather than only the average current.

Q: Do these units accept 110 V and 230 V mains?

Input ranges are model-specific and shown in the specification table. Where a wide-range input is available it is stated; otherwise send your mains voltage and we will match the model.

Q: What protection features are built in?

Typical protection covers short circuit, over-current, over-voltage and thermal shutdown. The exact set is listed per model in the specification table above.

Q: Can you supply matching DIN-rail or enclosed versions?

Open-frame, enclosed and DIN-rail variants exist across this family. Send the model you are working from and we will confirm the equivalent mounting option.

About the Psc 60W

The Psc 60W is part of the ELEHPD UPS Charger Series range. Chux Psc 60W 13.8V 12V 24v Universal AC UPS Battery Charge Function Switching Power Supply Specification ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Industrial control panels and PLC power rails
LED drivers, signage and display power
Battery charging and DC backup systems
Motor drives, welding sets and rectifier assemblies
Instrumentation and test equipment

How to specify the right UPS Charger Series

Size the output current with at least 20-30 % headroom over the load
Check the input range covers the local supply, including brown-outs
Confirm the enclosure and cooling method for the panel temperature
Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

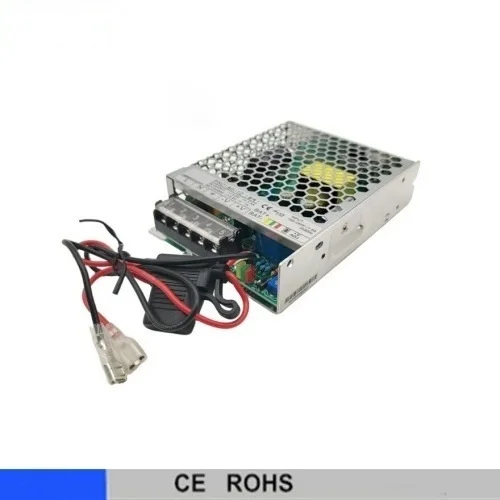

Chux Psc 60W 13.8V 12V 24v Universal AC UPS Battery Charge Function Switching Power Supply
Specification:

Model	PSC-60-12	PSC-60-24
output	DC voltage	CH1:13.8V	CH1:13.8V	CH1:27.6V	CH2:7.6V
Voltage tolerance	±1%	-----	±1%	-----
Rated current	3.5A	3.5A	2.0A	0.25A
Current range	0~3.5	0~3.5	0~2A	-----
Rated power	59.9W	61.8W
Ripple&noise	100mvp-p	-----	100mvp-p	-----
DCvoltage ADJ.range	CH1:11.3~14.9V	CH1:21.3~29.8V
input	Voltage range	90~264VAC,127~370VDC
frequency	47~63HZ
AC current	1.6A/115VAC,0.8A/230VAC
efficiency	81%	83%
Inrush current	Cold start current 25A/115VAC,45A/230VAC
Leakage current	< 1mA/240VAC
protection	Over load	Rated output power110%~150% start over load protection
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
Battery protection At low voltage	9.5~11V	20~22V
protection mode:cutoff output
Function	UPS introduction	long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Compliance to UL60950-1
EMC standard	Compliance to EN55022,CLASSB
others	Dimension	1299838mm (LWH)
Weight/packing	0.35kg/45pcs/24kg/0.034m⊃3;/1.2CU

Frequently asked questions about the Psc 60W

How much headroom should I leave on the power rating?

For continuous industrial duty plan on 20-30 % headroom above the measured load. For loads with high inrush, such as motors or capacitive input, allow more and check the surge rating rather than only the average current.

Do these units accept 110 V and 230 V mains?
