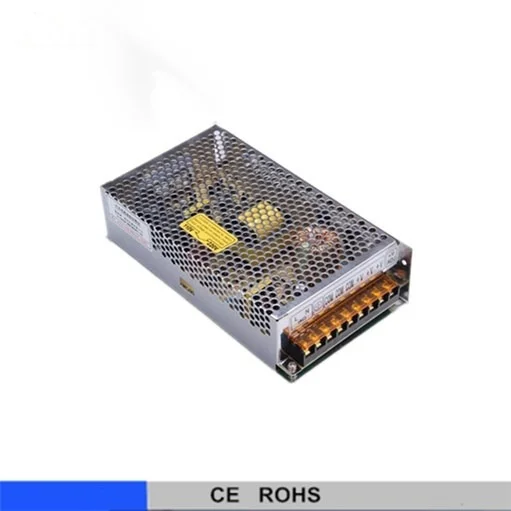

The UPS charger power supply AD-155W is part of the ELEHPD UPS Charger Series range. Features: Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Battery low and battery polarity protection Cooling by free air convection 100% full load burn-in test Fixed switching frequency at 45KHz 1 year warranty ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Industrial control panels and PLC power rails
- LED drivers, signage and display power
- Battery charging and DC backup systems
- Motor drives, welding sets and rectifier assemblies
- Instrumentation and test equipment
How to specify the right UPS Charger Series
- Size the output current with at least 20-30 % headroom over the load
- Check the input range covers the local supply, including brown-outs
- Confirm the enclosure and cooling method for the panel temperature
- Verify the protection set: over-current, over-voltage, thermal and short circuit
Specifications
UPS charger power supply AD-155WFeatures :
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low and battery polarity protection
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 45KHz
1 year warranty
| SPECIFICATION |
| MODEL | AD-155A | AD-155B | AD-155C |
| OUTPUT | | | |
| Output number | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 |
| DC voltage | 13.8V | 13.3V | 27.6V | 27.1V | 54V | 53.5V |
| Rated Current | 11.5A | 0.5A | 5.5A | 0.5A | 2.7A | 0.2A |
| Current Range | 0~11.5A | 0-0.5A | 0~5.5A | 0-0.5A | 0-2.7A | 0-0.5A |
| Rated Power | 151.55W | 151.55W | 156.5W |
| Ripple & Noise | 150mVp-p | -------- | 150mVp-p | -------- | 240mVp-p | -------- |
| Voltage Adj. Range | CH1:12~14.5V | CH1:24~29V | CH1:48-58V |
| Voltage Tolerance | ±2.0% | -------- | ±1.0% | -------- | ±1.0% | -------- |
| Line Regulation | ±0.5% | -------- | ±0.5% | -------- | ±0.5% | -------- |
| Load Regulation | ±0.5% | -------- | ±0.5% | -------- | ±0.5% | -------- |
| Setup, Rise Time | 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load |
| Hold Up Time | 24ms/230VAC 20ms/115VAC at full load |
| | |
| INPUT | |
| Voltage Range | 88~264VAC 47~63Hz; 124~370VDC |
| AC Current | 2.5A/115VAC 1.5A/230VAC |
| Efficiency | 80% | 84% | 84% |
| Inrush Current | Cold start 20A/115VAC 40A/230VAC |
| Leakage Current | <1mA /240VAC |
| SIZE | 199*110*50mm weight: 0.57kg |
| PROTECTION | Over load CH1:105 ~ 150% Over-voltage: 115-135% |
| working temperature | -10℃～+60℃ 20%-90%RH |
| withstand voltage | I/P-O/P:3KVAC 1minute I/P-FG:1.5KVAC 1minute O/P-PG:0.5KVAC 1minute |
| EMC standard | GB9254,EN55022 Class A |
