F360 RCCB

About the F360 RCCB

The F360 RCCB is part of the ELEHPD ELCB range. The item is in accordance with standards of IEC.,applying to the circuit of AC50/ 60Hz, 240Vsingle phase, 415V three phases and below it for industrial and mining enterprise, trade building, commerce and family. To mainly prevent electric fire and personal casualt accident caused by personal electric shock or leakage of electrified wire netting, this ELCB is a current-operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less elements, without auxiliary power and high working reliability. The function of the switch won`t be influenced by ambient temperature and lightning. The mutual inductor of the item is used to test vector differential ＆#118alue of passing current, and produces a relevant output power and add it to the tripper in secondary winding, if the current of vector differential ＆#118alue of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Consumer units and distribution boards in residential buildings
Commercial and retail fit-outs where selective protection is required
Industrial control panels and machine-builder assemblies
Solar PV, EV charger and battery-storage sub-circuits
OEM equipment where a DIN-rail protective device is specified

How to specify the right ELCB

Match the rated current to the circuit design current, then check the cable ampacity
Pick the trip curve to the load: B for resistive/lighting, C for general mixed loads, D for motors and transformers
Confirm the breaking capacity meets the prospective short-circuit current at the point of installation
Verify the pole configuration (1P, 1P+N, 2P, 3P, 3P+N, 4P) against the system earthing arrangement

Specifications

Usage

The item is in accordance with standards of IEC.,applying to the circuit of AC50/
60Hz, 240Vsingle phase, 415V three phases and below it for industrial and mining
enterprise, trade building, commerce and family. To mainly prevent electric fire
and personal casualt accident caused by personal electric shock or leakage of
electrified wire netting, this ELCB is a current-operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less elements, without auxiliary power and high working reliability. The function of the switch won`t be influenced by ambient temperature and lightning. The mutual inductor of the item is used to test vector differential ＆#118alue of passing current, and produces a relevant output power and add it to the tripper in secondary winding, if the current of vector differential ＆#118alue of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection.

Type、Specification、Technical parameter

Type	Rated current	Rated voltage	Rated operating current	Residual non operating current	Rated conditional short circuit curent	Mechanical life
F362	16A 25A 32A 40A 63A 80A 100A	AC 230V	0.03A 0.1A 0.3A	0.5I△n~I△n	3000A to 6000A	10000
F364	16A 25A 32A 40A 63A 80A 100A	AC 400V	0.03A 0.1A 0.3A	0.5I△n~I△n	3000A to 6000A	10000

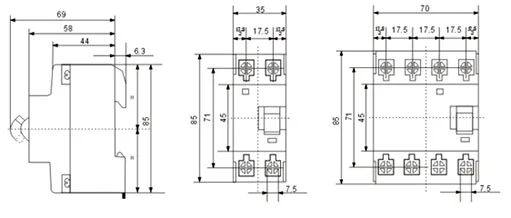

Dimension And Mounting
