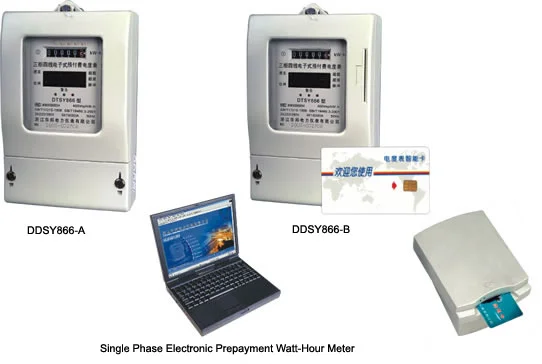

DDSY866 Single-Phase Electronic Prepayment

About the DDSY866 Single-Phase Electronic Prepayment

The DDSY866 Single-Phase Electronic Prepayment is part of the ELEHPD KWH Meter range. APPLICATION DDSY866 Single Phase Electronic Prepayment Watt-hour Meter is a new generation product,which that is developed by our company by adopting the newest national micro-technique and the newest national electronic currency-IC card for purchasing electricity media.Such as electrial energy calculation,load control and commercialized,setting charge and adjusting load state in the electric-network. The product can be installed in the electric meter box,indoor or out door,the ambient temperature is -25℃-+60℃. The relative humidity is equal to or less than 85%. Each of the capabilities index of product accords with IEC 1036 static electric meter international standard and all the technique requirement of JB/T8382-1996 prepayment electric meter standard. SPEIFICATIONS & MAIN TECHNICAL PARAMTER Rated voltage: AC220V Rated current:1.5(6)A,2.5(10)A,4(20)A,5(30)A,10(40)A,10(60)A Rated frequency: 50Hz Degree of accuracy class:class 1.0,2.0 Starting current:0.4%(class1.0)、0.5%(class2.0)rated current Shunt running:It use logic circuit to anti-creep Surrounding condition:Normal operation temperature is:-10～+45℃ Limited operation temperature is:-20～+55℃ Relative temperature:≤85% Weight: 0.7kg or so Outline size:163×10×61mm ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: DDSY866 Single-Phase Electronic Prepayment Watt-Hour Meter

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right KWH Meter

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

APPLICATION

DDSY866 Single Phase Electronic Prepayment Watt-hour Meter is a new generation product ,which that is developed by our company by adopting the newest national micro-technique and the newest national electronic currency-IC card for purchasing electricity media.Such as electrial energy calculation ,load control and commercialized,setting charge and adjusting load state in the electric-network.
The product can be installed in the electric meter box,indoor or out door,the ambient temperature is -25℃-+60℃. The relative humidity is equal to or less than 85%.
Each of the capabilities index of product accords with IEC 1036 static electric meter international standard and all the technique requirement of JB/T8382-1996 prepayment electric meter standard.

SPEIFICATIONS & MAIN TECHNICAL PARAMTER

Rated voltage: AC220V
Rated current:1.5(6)A,2.5(10)A,4(20)A,5(30)A,10(40)A,10(60)A
Rated frequency: 50Hz
Degree of accuracy class:class 1.0,2.0
Starting current:0.4%(class1.0)、0.5%(class2.0)rated current
Shunt running :It use logic circuit to anti-creep
Surrounding condition:Normal operation temperature is:-10～+45℃
Limited operation temperature is:-20～+55℃
Relative temperature:≤85%
Weight: 0.7kg or so
Outline size:163×10×61mm
