About the ZP Disc Rectifier Diode
The ZP Disc Rectifier Diode is part of the ELEHPD Thyristor And Rectifier range. ZP Disc Rectifier Diode from the ELEHPD Thyristor And Rectifier range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Industrial control panels and PLC power rails
- LED drivers, signage and display power
- Battery charging and DC backup systems
- Motor drives, welding sets and rectifier assemblies
- Instrumentation and test equipment
How to specify the right Thyristor And Rectifier
- Size the output current with at least 20-30 % headroom over the load
- Check the input range covers the local supply, including brown-outs
- Confirm the enclosure and cooling method for the panel temperature
- Verify the protection set: over-current, over-voltage, thermal and short circuit
Specifications
|
![]()
普通整流管 Standard Rectifier Diodes (ZP Disc model) |
|
型号Type
|
VRRM |
IF(AV) |
IRRM |
VFM/IFM |
RTH(j-hs) |
Tjm |
安装力
|

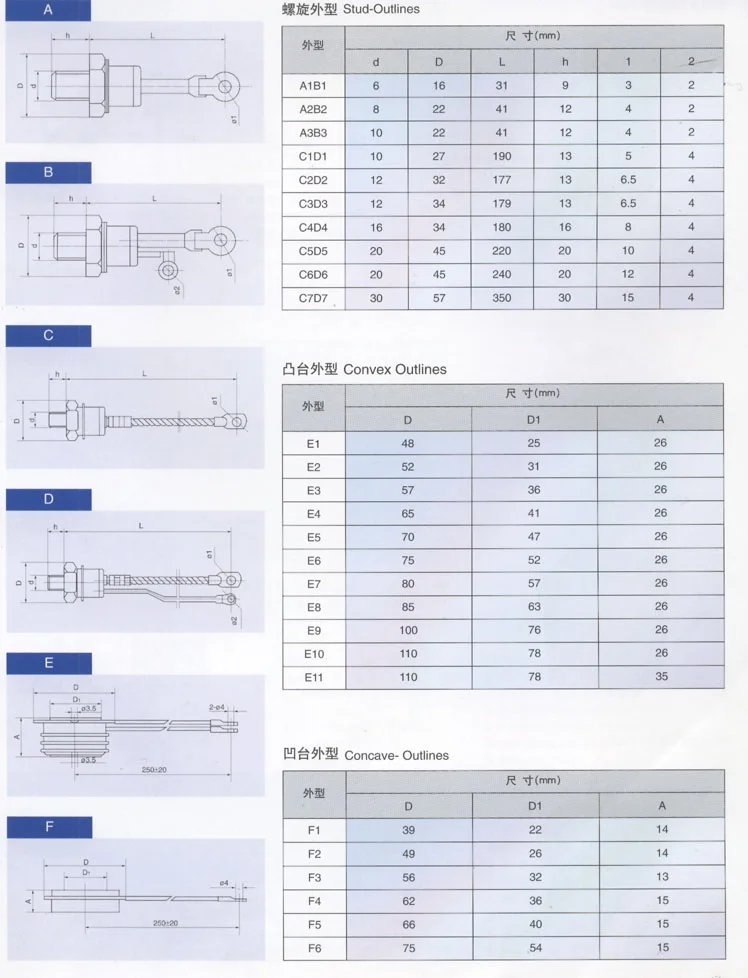

外形
Outline
（Fig） |
|
|
THS55℃ |
|
25℃ |
|
|
|
V |
A |
mA |
V/A |
℃/W |
℃ |
KN |
|
ZP200A |
100-5000 |
200 |
16 |
1.8/600 |
0.090 |
150 |
3.3-5.5 |
5/19 |
|
ZP300A |
100-5000 |
300 |
30 |
1.8/900 |
0.065 |
150 |
5.3-10 |
6/20 |
|
ZP400A |
100-5000 |
400 |
40 |
1.8/1200 |
0.040 |
150 |
10-20 |
2/7/21 |
|
ZP500A |
100-5000 |
500 |
40 |
1.8/1500 |
0.040 |
150 |
10-20 |
2/7/21 |
|
ZP600A |
100-5000
|
600 |
40 |
1.8/1800 |
0.033 |
150 |
10-20 |
1/8 |
|
ZP800A |
100-5000
|
800 |
80 |
2.2/2400 |
0.022 |
150 |
19-26 |
1/8 |
|
ZP1000A |
100-5000
|
1000 |
80 |
2.0/3000 |
0.022 |
150 |
19-26 |
9 |
|
ZP1200A |
100-5000
|
1200 |
120 |
2.2/3000 |
0.020 |
150 |
21-30 |
10/11 |
|
ZP1500A |
100-5000
|
1500 |
120 |
2.0/3000 |
0.020 |
150 |
21-30 |
10/11 |
|
ZP2000A |
100-5000
|
2000 |
160 |
2.2/4000 |
0.016 |
150 |
30-40 |
12/13/14/15 |
|
ZP2500A |
100-5000
|
2500 |
200 |
2.2/5000 |
0.011 |
150 |
35-47 |
12/13/14/15 |
|
ZP3000A |
100-5000
|
3000 |
160 |
2.0/5000 |
0.016 |
150 |
30-40 |
12/13/14/15 |
|
ZP3500A |
100-5000
|
3500 |
200 |
2.0/5000 |
0.011 |
150 |
35-47 |
14/15/17 |
|
ZP4000A |
100-5000
|
4000 |
200 |
2.0/5000 |
0.009 |
150 |
70-95 |
14/15/17 |
|
ZP5000A |
100-5000 |
5000 |
50 |
1.25/5000 |
0.0135 |
170 |
19-26 |
14/15/17 |
| 特点 |
典型应用 |
说明 |
| ■ 扩散结 |
■ 大功率变流器 |
■ 除非另作说明，参数表中其它参数皆为在Tjm 下 |
| ■ 平板型陶瓷管封装 |
■ 焊结设备 |
的测试值。 |
| ■ 双面冷却 |
■ 电机控制和驱动 |
|
|
■ 充电设备 | | ![]() |
