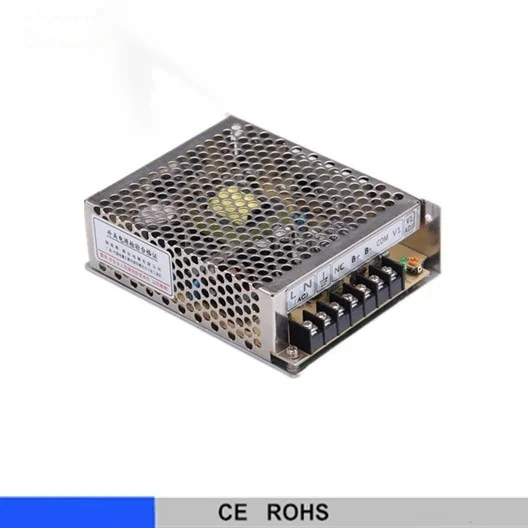

Dual Output with Battery Charger ADD-55

About the Dual Output with Battery Charger ADD-55

The Dual Output with Battery Charger ADD-55 is part of the ELEHPD UPS Charger Series range. 55W Dual Output with Battery Charger (UPS Function) ADD-55 series Features &Yuml; Universal AC input / Full range &Yuml; Protections: Short circuit / Overload / Over voltage &Yuml; Battery low protection (except for ADS series) &Yuml; DC alarm signal (optional) &Yuml; Cooling by free air convection &Yuml; Fixed switching frequency at 45kHz &Yuml; Approvals: UL / CUL / TUV /CB/CE &Yuml; 100% full load burn-in test &Yu ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: 55W Dual Output with Battery Charger (UPS Function) ADD-55 series55W Dual Output with Battery Charger (UPS Function) ADD-55 series

Typical applications

Industrial control panels and PLC power rails
LED drivers, signage and display power
Battery charging and DC backup systems
Motor drives, welding sets and rectifier assemblies
Instrumentation and test equipment

How to specify the right UPS Charger Series

Size the output current with at least 20-30 % headroom over the load
Check the input range covers the local supply, including brown-outs
Confirm the enclosure and cooling method for the panel temperature
Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

55W Dual Output with Battery Charger (UPS Function) ADD-55 series

Features

Ÿ Universal AC input / Full range

Ÿ Protections: Short circuit / Overload / Over voltage

Ÿ Battery low protection (except for ADS series)

Ÿ DC alarm signal (optional)

Ÿ Cooling by free air convection

Ÿ Fixed switching frequency at 45kHz

Ÿ Approvals: UL / CUL / TUV /CB/CE

Ÿ 100% full load burn-in test

Ÿ 2 years warranty

General Specification

AC input voltage range..................88~264VAC; 124~370VDC

AC inrush current...........................Cold start, 20A at 115VAC, 40A at 230VAC

DC adjustment range.....................12V, 24V: ±10%

13.8V: 12~14.5V; 27.6V: 24~29V

Overload protection.......................105%~150% hiccup mode, auto-recovery

Overvoltage protection..................CH1: 105%~135% rated output voltage

Setup, rise, hold up time................800ms, 50ms, 80ms at full load and 230VAC

Withstand voltage..........................I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute

Working temperature.....................-10~60 °C (refer to output derating curve)

Safety standards...........................UL60950-1, TUV EN60950-1 approved

EMC standards.............................EN55022 class B, EN61000-3-2,3,

EN61000-4-2,3,4,5,6,8,11, ENV50204

Connection...................................8P/ 8.25mm pitch terminal block

Packing........................................0.57kg ; 24pcs / 13.7kg / 0.75CUFT

Dual Output with Battery Charger (UPS Function)

Model No.	Output	Tol.	R&N	Effi.	Max.
ADD-55A	13.8V, 0~3.50A	±1%	100mV	71%	53W
5V, 0~4.00A	±3%	100mV
13.4V, 0~0.23A	(Charger)
ADD-55B	27.6V, 0~2.00A	±1%	150mV	74%	55W
5V, 0~4.00A	±3%	150mV
26.5V, 0~0.16A	(Charger)
