Specifications
NT Low voltage H.R.C.Fuse(Fuse-Links)
|
Type NT Low voltage H.R.C.Fuse is one of our new products designed with reference to overseas advanced technology. Being light in weight,small in size,low in power-loss and high in breaking capacity,this product has been widely used in over-load and short-circuit protection of electric installations.
This product conforms with IEC 269 and GB 13539 standards,with all of the ratings at the world advanced level. |
|
Photo |
No |
Type |
Rated Current
(A) |
Rated Voltage(V) |
Rated Power
(W) |
Weight
(kg) |
|
|
00101
|
NT00C
RT16-00C
NH00C
|
4
6
10
16
20
25
32
40
50
63
80
100
|
500
660
|
0.67
0.89
1.14
1.65
1.95
2.50
3.32
3.56
4.30
4.50
4.60
6.00
7.30 |
0.12
|
|
|
00102
|
NT00
RT16-00
NH00
|
4
6
10
16
20
25
32
40
50
63
80
100
125
160
|
500
660
|
0.67
0.89
1.14
1.65
1.95
2.50
3.32
3.56
4.30
4.50
4.60
6.00
7.30
7.80
9.60 |
0.16
|
|
|
00103
|
NT0
RT16-0
NH0
|
4
6
10
16
20
25
32
40
50
63
80
100
125
160 |
500
660
|
1.03
1.42
2.45
2.36
2.70
3.74
4.30
4.70
5.50
6.90
7.60
8.90
10.10
15.20 |
0.23
|
|
|
00104
|
NT1
RT16-1
NH01
|
80
100
125
160
200
224
250
|
500
660
|
1.20
2.25
10.20
13.00
15.20
16.80
18.30
|
0.66
|
|
|
00105
|
NT2
RT16-2
NH02
|
125
160
200
250
300
315
355
400
|
500
660
|
9.00
11.5
15.0
16.0
18.4
21.0
19.2
24.5
26.0
|
0.85
|
NT Low voltage H.R.C.Fuse(Fuse-Links)
|
| Main Technical Data:This product conforms with IEC 269 and GB13539 standards. |
|
Photo |
No |
Type |
Rated Current
(A) |
Rated Voltage(V) |
Rated Power
(W) |
Weight
(kg) |
|
|
00106
|
NT3
RT16-3
NH03
|
315
355
400
425
500
630
|
500
660
|
21.70
22.70
26.80
28.90
32.00
40.30
|
0.85
|
|
|
00107
|
NT4
RT17
NH04
|
800
1000
|
500
660
|
62.00
75.00
|
2.04
|
| |

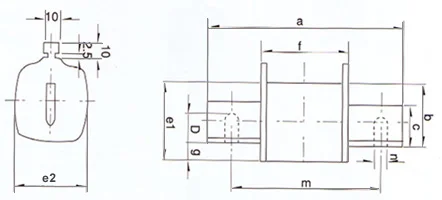

| Fuse Link Dimensions |
|
|
| |
Type
|
Dimensions (mm) |
|
|
|
|
a |
b |
c |
e1 |
e2 |
i |
f |
g |
m |
n |
o |
|
|
NT00C |
78.5 |
35 |
15 |
41 |
20 |
6 |
49 |
7.5 |
|
|
|
|
|
NT00 |
78.5 |
35 |
15 |
45 |
29 |
6 |
49 |
11.5 |
|
|
|
|
|
NT0 |
125 |
35 |
15 |
45 |
29 |
6 |
68 |
11.5 |
|
|
|
|
|
NT1 |
135 |
40 |
21 |
48 |
48 |
6 |
68 |
12 |
|
|
|
|
|
NT2 |
150 |
48 |
27 |
58 |
58 |
6 |
68 |
13 |
|
|
|
|
|
NT3 |
150 |
60 |
33 |
67 |
67 |
6 |
68 |
14 |
|
|
|
|
|
NT4 |
200 |
83 |
50 |
96 |
88 |
8 |
68 |
20 |
150 |
16 |
32 |
| | | | | |
