PH-104 Photocell Control

About the PH-104 Photocell Control

The PH-104 Photocell Control is part of the ELEHPD Photocell Control range. PH-104 Photocell Control from the ELEHPD Photocell Control range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right Photocell Control

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

Photocell Control PH-104

Rated Voltage:	120V～.220V～(Applicable 110V.127V.230V.240V)
Rated Frequency:	50/60Hz
Rated Current:	3A,10A
Light Level:	ON:<20Lux 　　OFF:<80Lux
Acting Time:	ON:<2′　　OFF:<2′
Electrical Life:	>6500Circles

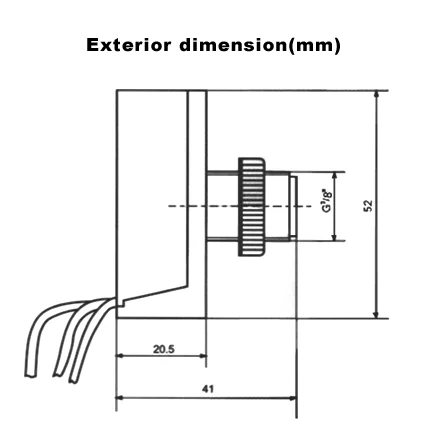

Installation
The controller works according to the scene illumination.
1.It can not be illuminated by the simulative light of 50lux or more.
2.It can not be installed in the shadow of 20lux or less (daytime).

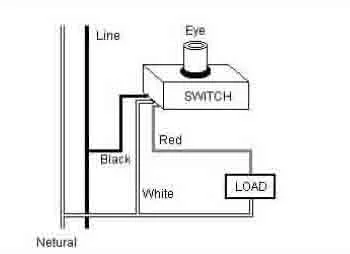

3.The wire of the controller cannot be mis-connected (red wire/load,white wire/controlling wire,black wire/neutral wire).

Frequently asked questions about the PH-104 Photocell Control

What is the difference between a contactor and a relay?

A contactor is built for switching power circuits repeatedly at high current, often with motor duty ratings (AC-3) and arc-suppressing chambers. A relay switches control signals at low current. In practice: contactor for the motor, relay in the control circuit that drives the contactor coil.

How do I calculate the correct contactor size for a motor?

Use the motor's full-load current, apply the AC-3 rating for the operating voltage, and allow for the number of starts per hour. As a rule of thumb, the contactor's AC-3 rating should be at least equal to the motor FLC, then step up one frame if the duty is heavy.

Do you supply the coil voltage I need?

Coil voltages are specified per order. Send the model number, coil voltage and frequency you require and we will confirm availability and lead time.

Are auxiliary contacts included?

Base models come with the standard auxiliary contact configuration for that frame. Add-on auxiliary blocks and mechanical interlocks can be quoted with the contactor.
