About the MES Current Transformer

The MES Current Transformer is part of the ELEHPD Current Transformer range. MES Current Transformers The MES series of current transformer have beautiful outline and Convenient for mounting in many ways. The most current transform need the special mounting and the MES series used the mounting of DIN typing With a lot of times. The protective cover for the terminal block used the switching device with Safety and quick. MES guide rail type CT: Primary current: Secondary cur ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Industrial control panels and PLC power rails
LED drivers, signage and display power
Battery charging and DC backup systems
Motor drives, welding sets and rectifier assemblies
Instrumentation and test equipment

How to specify the right Current Transformer

Size the output current with at least 20-30 % headroom over the load
Check the input range covers the local supply, including brown-outs
Confirm the enclosure and cooling method for the panel temperature
Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

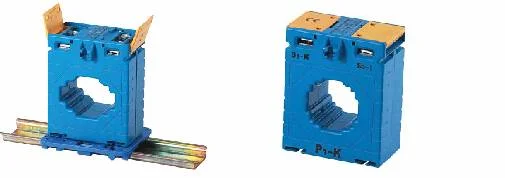

MES Current Transformers

The MES series of current transformer have beautiful outline and Convenient for mounting in many ways. The most current transform need the special mounting and the MES series used the mounting of DIN typing With a lot of times. The protective cover for the terminal block used the switching device with Safety and quick.

MES guide rail type CT:

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:

5A-3000A
5A, 1A
VDE0414, BS7626, IEC44-1
0.72/3KV
50-60Hz
2.5VA, 5VA, 10VA, 15VA
0.5, 1.0
Ith=60 X Ih
FS<5

Model	A	B	C	D	E	F	G
MES-62/30	81	47	30	35	71	31	31
MES-62/40	81	47	30	35	71	41	41
MES-30	88	52	30	41	77	31	31
MES-40	88	52	30	41	77	41	41
MES-60	117	57	50	184	77	61	61
MES-100	115	53	86	38	74	101	101

Technical data & Specification:

Type

Rated current (A)

Rated power(AV)

Class:0.5

Class:1.0

MES-62/30

30/5
40/5
50/5
60/5
75/5
100/5

150/5
200/5

-
-
-
-
-
1.5

2
2.5

1
1
1
1.5
1.5
2.5

3
5

MES-62/40

60/5
75/5
100/5
150/5
200/5
250/5

300/5

-
-
1
1.5
2.5
3

1
1
2
2.5
5
5

7.5

MES-30

30/5
40/5
50/5
60/5
75/5
100/5

150/5
200/5

-
-
-
-
1.5
2.5

1
1
1.5
1.5
2.5
5

7.5

MES-40

100/5
150/5
200/5
250/5
300/5
400/5

500/5

1.5
2.5
5
5
10
10

2.5
5
5
5
15
15

MES-60

600/5
800/5
1000/5
1200/5

15
15
15
15

20
20
20
20

MES-100

1000/5
1200/5
1500/5
1600/5
2000/5
2500/5

3000/5

15
15
15
15
15
15

30
30
30
30
30
30

outline drawing:
