MP16-H Stainless steel pushbutton

About the MP16-H Stainless steel pushbutton

The MP16-H Stainless steel pushbutton is part of the ELEHPD Pushbutton range. Installation Size Type Remarks Φ16mm MP16-H Material: @Nickel-plated brass crust(N), @Gold -plated brass Crust (G), @ Stainless Steel Crust (S) can be selected. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right Pushbutton

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

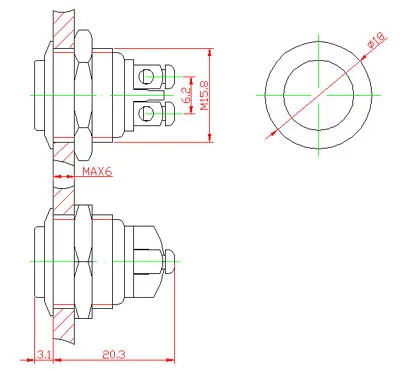

Specifications

High flat round head type 高平圆形头部

Installation Size	Type	Remarks
Φ16mm	MP16-H	Material: @Nickel-plated brass crust(N), @Gold-plated brass Crust (G), @Stainless Steel Crust (S) can be selected.
Φ19mm	MP19-H

Frequently asked questions about the MP16-H Stainless steel pushbutton

What is the difference between a contactor and a relay?

A contactor is built for switching power circuits repeatedly at high current, often with motor duty ratings (AC-3) and arc-suppressing chambers. A relay switches control signals at low current. In practice: contactor for the motor, relay in the control circuit that drives the contactor coil.

How do I calculate the correct contactor size for a motor?

Use the motor's full-load current, apply the AC-3 rating for the operating voltage, and allow for the number of starts per hour. As a rule of thumb, the contactor's AC-3 rating should be at least equal to the motor FLC, then step up one frame if the duty is heavy.

Do you supply the coil voltage I need?

Coil voltages are specified per order. Send the model number, coil voltage and frequency you require and we will confirm availability and lead time.

Are auxiliary contacts included?

Base models come with the standard auxiliary contact configuration for that frame. Add-on auxiliary blocks and mechanical interlocks can be quoted with the contactor.
