MG Distribution Box

About the MG Distribution Box

The MG Distribution Box is part of the ELEHPD Box range. MG Modular distribution box is mainly used in the circuit of AC 50Hz and rated voltage 220V/380V, and acted to install the modular combination equipment. It is widely used in family、high building、house、station、port、airport、commercial house、hospital、cinema、enterprise and so on occasions. The plastic unit of the ERX1 modular distribution box adopts ABS flame-proof material with the characteristics of flame-proof、impulse-proof、excellent insulation property and so on.This products confirm to the standard BS EN 60439-3; JB/T7121-93. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Distribution boards in residential and commercial buildings
Industrial panel building and machine enclosures
Outdoor and wet-area installations
Panel thermal management and dust filtration
Site power distribution and temporary supply

How to specify the right Box

Set the IP rating from the environment: IP20 indoors, IP65 for wash-down or outdoor
Size the enclosure around the DIN-rail modules plus wiring space and gland entry
Check the material: sheet steel, stainless or insulating polycarbonate
Confirm the internal temperature rise and whether ventilation or filtering is needed

Specifications

Applicable scope

MG Modular distribution box is mainly used in the circuit of AC 50Hz and rated voltage 220V/380V, and acted to install the modular combination equipment. It is widely used in family、high building、house、station、port、airport、commercial house、hospital、cinema、enterprise and so on occasions. The plastic unit of the ERX1 modular distribution box adopts ABS flame-proof material with the characteristics of flame-proof、impulse-proof、excellent insulation property and so on.This products confirm to the standard BS EN 60439-3; JB/T7121-93.

Structure and features

This product is provided with elegant appearance and reasonable structure; installation and dismounting are easy; The product is designed according to the requirement of standardization、generalization and seriation, which make the products with excellent interchangeability.

Technical parameters

Rated frequency	50Hz
Rated voltage	220/380V
Way numbers	4, 6, 8, 12, 16, 18, 24, 36, 54
Box base material	Plastic , metal
Rated current	No more than 250A
Rated current for each short circuit electric of preventing	No more than 125A

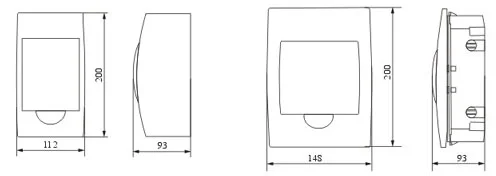

Installation dimension
　

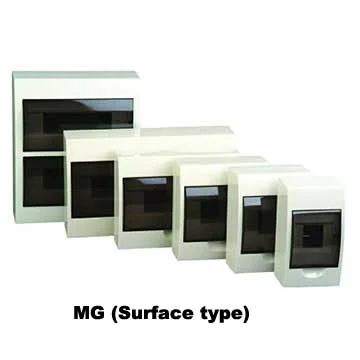

MG type (Surface base)	Ways	A	B	C
4	200	112	93
6	200	148	93
8	200	185	93
12	200	256	93
18	220	364	93

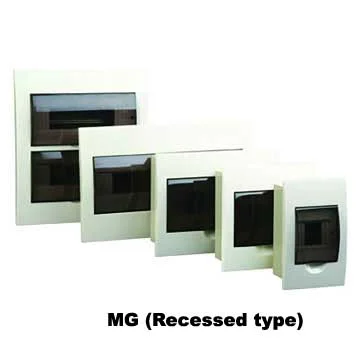

MG type (Recessed base)	4	190	110	80
8	190	180	80
12	190	250	80
16	190	320	80
18	200	358	80
24	330	250	80
36	420	357	80
54	650	360	80

Frequently asked questions about the MG Distribution Box

Which IP rating do I need for outdoor installation?

IP65 is the practical minimum for exposed outdoor use and IP66 for wash-down areas. In coastal or chemically aggressive sites also confirm the material and finish, since corrosion is usually the first failure mode.

How do I size the enclosure?

Add up the DIN-rail module widths you need, then allow roughly 20-30 % spare rail and enough depth for wiring bends plus any gland plates. Undersizing forces cable routing that damages insulation.

Can the enclosures be supplied with a custom cut-out layout?

Yes. Custom drilling, cut-outs, silk-screen printing and pre-assembled internal rails can be arranged on qualified volumes.

Is ventilation needed in the panel?

Only if the internal heat load raises the temperature beyond the components' rating. Add the total dissipation of the devices, then choose filtered fans or louvers to keep the internal temperature within the rated ambient.
