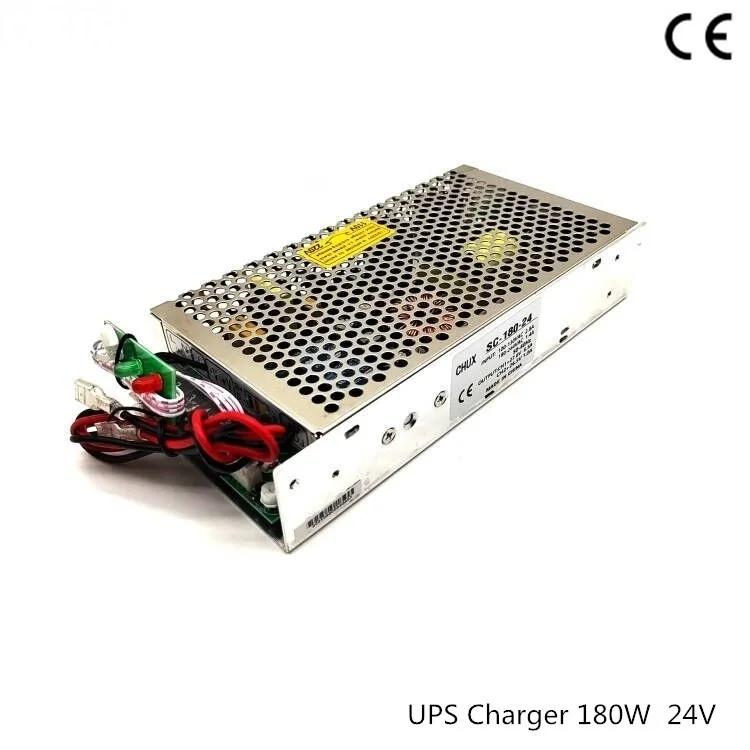

Universal AC UPS/Charge Function Monitor

UPS charging power supply Features: (the user instruction): RED LED: AC INPUT GREEN LED: DC OUTPUT YELLOW LED: battery charge Long-term flo…

  • Category: Industrial Control › UPS Charger Series
  • Model: chance_536
  • Brand / OEM: ELEHPD — OEM branding available
  • Export: Worldwide, FOB Ningbo / Shanghai
Request a quotation for this UPS Charger Series

About the Universal AC UPS/Charge Function Monitor

The Universal AC UPS/Charge Function Monitor is part of the ELEHPD UPS Charger Series range. UPS charging power supply Features: (the user instruction): RED LED: AC INPUT GREEN LED: DC OUTPUT YELLOW LED: battery charge Long-term floating on the battery charge, high efficiency, battery fullness can reach more than 90% Which power to the battery charge, no requirements for the type of battery, lead, lithium and other batteries are OK! Specification ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: 180W 12V 13.5A 24V Universal AC UPS/Charge Function Monitor Switching Power Supply Battery Charger Output 12VDC

Typical applications

How to specify the right UPS Charger Series

  1. Size the output current with at least 20-30 % headroom over the load
  2. Check the input range covers the local supply, including brown-outs
  3. Confirm the enclosure and cooling method for the panel temperature
  4. Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

180W 12V 13.5A 24V Universal AC UPS/Charge Function Monitor Switching Power Supply Battery Charger Output 12VDC



UPS charging power supply Features:

(the user instruction):

RED LED: AC INPUT

GREEN LED: DC OUTPUT

YELLOW LED: battery charge

Long-term floating on the battery charge, high efficiency, battery fullness can reach more than 90%

Which power to the battery charge, no requirements for the type of battery, lead, lithium and other batteries are OK!

Specification:

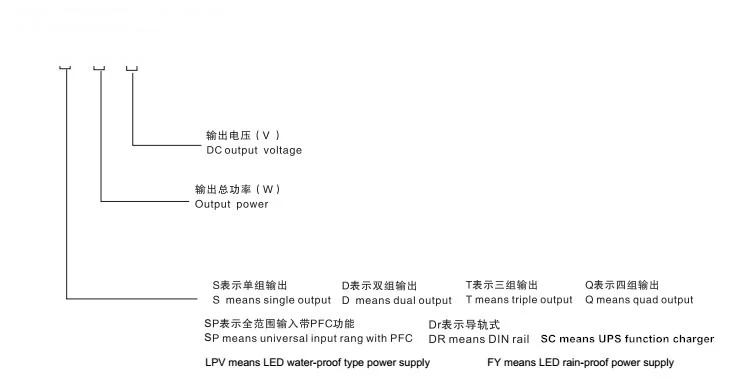

Model

SC-180-12

SC-180-24

output

DC voltage

CH1:12V

CH2:13.8V

CH1: 24V

CH2:27.6V

Voltage tolerance

±2%

-----

±1%

-----

Rated current

13.5A

1.5A

6.5A

1A

Current range

0~15A

-----

0~7.5A

-----

Rated power

182.7W

182.7W

Ripple&noise

120mvp-p

-----

180mvp-p

-----

DCvoltage ADJ.range

CH1:10.3~13.8V

CH1:21.3~27.5V

input

Voltage range

90~132VAC/ 180VAC~264VAC Select by switch ,237~370VDC

frequency

47~63HZ

AC current

4A/115VAC,2.5A/230VAC

efficiency

81%

83%

Inrush current

Cold start current 30A/115VAC,50A/230VAC

Leakage current

< 1mA/240VAC

protection

Over load

Rated output power110%~150% start over load protection

protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed

Battery protection

At low voltage

9.5~11V

20~22V

protection mode:cutoff output

Function

UPS introduction

long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop charging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard,

cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Compliance to UL60950-1

EMC standard

Compliance to EN55022,CLASSB

others

Dimension

199*98*38mm (L*W*H)

Weight/packing

0.6kg/45pcs/26kg/0.041m⊃3;/1.45CUFT
