FSL1-100A RCCB

About the FSL1-100A RCCB

The FSL1-100A RCCB is part of the ELEHPD ELCB range. Usage Type FSL1-100A(ERL1-100A) Residual Current Circuit Breaker without Over current protection conforms to the standards of GB16916.1、IEC61008、BS4293 etc. It is used in the circuits of AC 50~60HZ, single phase 230V(220V), three phases 400V (380V) in industrial & mining enterprises,Commercial buildings and housing for protection of personal electric shock hazard and electric equipment and for unfrequent switchover of circuits under normal conditions. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Consumer units and distribution boards in residential buildings
Commercial and retail fit-outs where selective protection is required
Industrial control panels and machine-builder assemblies
Solar PV, EV charger and battery-storage sub-circuits
OEM equipment where a DIN-rail protective device is specified

How to specify the right ELCB

Match the rated current to the circuit design current, then check the cable ampacity
Pick the trip curve to the load: B for resistive/lighting, C for general mixed loads, D for motors and transformers
Confirm the breaking capacity meets the prospective short-circuit current at the point of installation
Verify the pole configuration (1P, 1P+N, 2P, 3P, 3P+N, 4P) against the system earthing arrangement

Specifications

FSL1-80A/100A

Usage
Type FSL1-100A(ERL1-100A) Residual Current Circuit Breaker without Over current protection conforms to the standards of GB16916.1、IEC61008、BS4293 etc. It is used in the circuits of AC 50~60HZ, single phase 230V(220V), three phases 400V (380V) in industrial & mining enterprises,Commercial buildings and housing for protection of personal electric shock hazard and electric equipment and for unfrequent switchover of circuits under normal conditions.

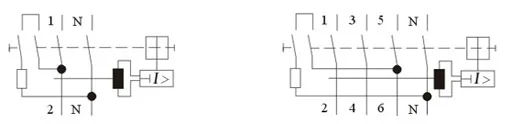

Operation principle figure

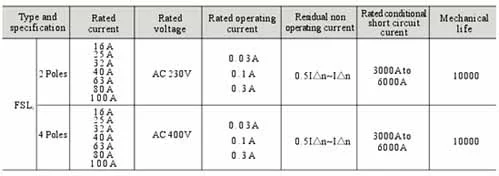

Type、Specification、Technical parameter

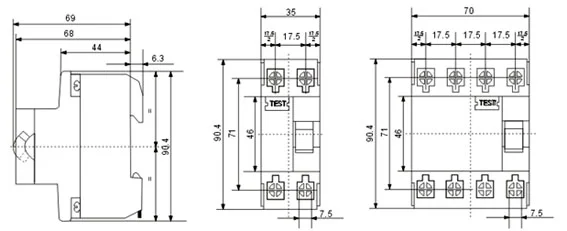

Dimension and Mounting

Notice

1 Leakage Protection function of RCCB is tested and adjusted by the manufacturer, users can not open the product at random during usage.
2 After using RCCB for a certain time (normally one month), test button should be pressed once in a state of making the circuit to check whether the function of RCCB is normal or reliable ( press test button once, the RCCB can break off once). If abnormal, it should be unloaded and sent to the manufacturer for repair.
3 RCCB must not be wetted or soaked by rain, snow or water during the course of transportation, storation and usage.
4 RCCB can not Play the role of protection when short circuit occurs.

Frequently asked questions about the FSL1-100A RCCB

What is the difference between an MCB and an MCCB?

An MCB (miniature circuit breaker) is a DIN-rail device for final circuits, typically rated up to 125 A with a fixed trip curve. An MCCB (moulded case circuit breaker) is a larger device for main and sub-main distribution, usually 16 A to 1600 A, with adjustable thermal and magnetic settings and a higher breaking capacity. Use an MCB for branch circuits and an MCCB where you need adjustability or higher fault ratings.

How do I choose between a Type B, C and D trip curve?

Type B trips between 3 and 5 times rated current and suits resistive loads such as lighting and heaters. Type C trips between 5 and 10 times and is the general-purpose choice for socket circuits and mixed loads. Type D trips between 10 and 20 times and is used for loads with high inrush, such as motors, transformers and large LED drivers.

What does 6 kA breaking capacity mean in practice?

It is the maximum prospective short-circuit current the device can safely interrupt. 6 kA covers most domestic and light commercial installations. Where the transformer is close and the fault level is higher, specify 10 kA devices so the breaker still clears the fault without damage.

Can these devices be supplied with your own brand?

Yes. OEM branding, buyer-specific labels, custom carton print and private-model numbering can be arranged on qualified order volumes.
