C65NLE RCBO

About the C65NLE RCBO

The C65NLE RCBO is part of the ELEHPD RCBO range. C65NLE RCBO from the ELEHPD RCBO range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Consumer units and distribution boards in residential buildings
Commercial and retail fit-outs where selective protection is required
Industrial control panels and machine-builder assemblies
Solar PV, EV charger and battery-storage sub-circuits
OEM equipment where a DIN-rail protective device is specified

How to specify the right RCBO

Match the rated current to the circuit design current, then check the cable ampacity
Pick the trip curve to the load: B for resistive/lighting, C for general mixed loads, D for motors and transformers
Confirm the breaking capacity meets the prospective short-circuit current at the point of installation
Verify the pole configuration (1P, 1P+N, 2P, 3P, 3P+N, 4P) against the system earthing arrangement

Specifications

C65NLE 2P

C65NLE 4P

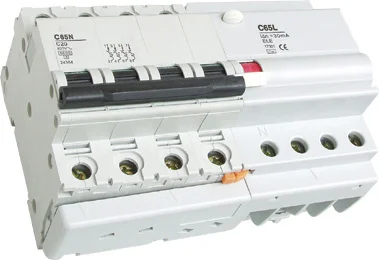

C65NLE Residual Current Circuit Breaker with Over Current Protection

Application

C65NLE RCBO is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz, rated voltage single-phase 230V, 3 phase 400V, rated current up to 60A. When somebody gets an electric shock or the residual current of the circuit exceeds the fixed ＆#118alue, the ELCB can cut off the power within the time of 0.1s automatically to protect the personal safety and preventing the equipment from the fault resulted by the residual current. With this function, the ELCB can protect the circuit against overload and short circuit or can be used for the unfrequent switchover of the circuit under normal conditions. It conforms to IEC61009 standard.

Specifications

Number of Poles	1P+N, 2P, 3P, 3P+N, 4P
Rated voltage	240/415V
Rated current	6A 10A 16A 20A 25A 32A 40A 50A 63A
Rated operating current (mA)	30mA 100mA 300mA
Rated non-operating()	≤0.5
Tripping Curve	C, D
