Waterproof Box

About the Waterproof Box

The Waterproof Box is part of the ELEHPD Box range. Waterproof Box from the ELEHPD Box range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Distribution boards in residential and commercial buildings
Industrial panel building and machine enclosures
Outdoor and wet-area installations
Panel thermal management and dust filtration
Site power distribution and temporary supply

How to specify the right Box

Set the IP rating from the environment: IP20 indoors, IP65 for wash-down or outdoor
Size the enclosure around the DIN-rail modules plus wiring space and gland entry
Check the material: sheet steel, stainless or insulating polycarbonate
Confirm the internal temperature rise and whether ventilation or filtering is needed

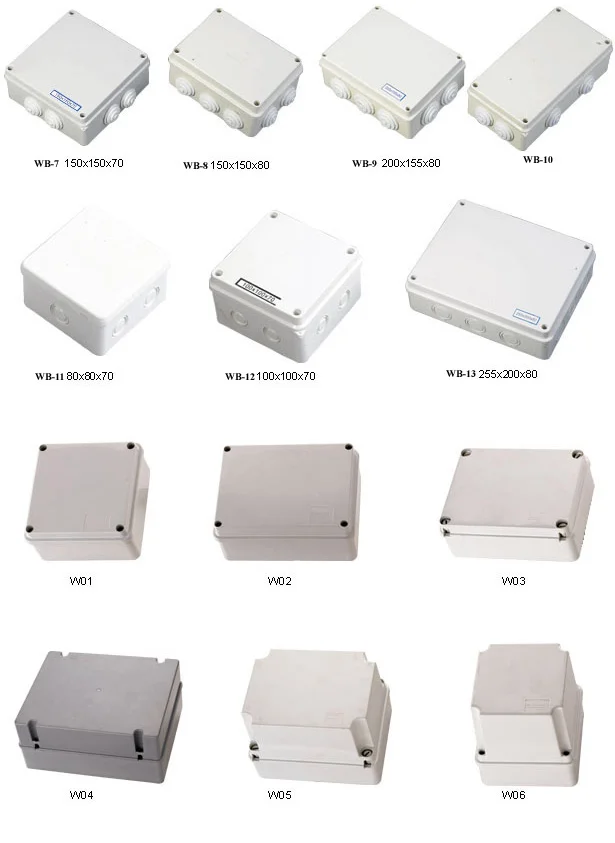

Specifications

WB-1 (IP44) 70x40,50x50 WB-2 (IP44) 80x50, 85x45

WB-3(IP55) 85x85x50,100x100x45 WB-4(IP55) 150x150x70

WB-5(IP55) 190x150x75,200x100x70,200x200x80 WB-6(IP55)250x190x90,300x250x120,400x350x120

Frequently asked questions about the Waterproof Box

Which IP rating do I need for outdoor installation?

IP65 is the practical minimum for exposed outdoor use and IP66 for wash-down areas. In coastal or chemically aggressive sites also confirm the material and finish, since corrosion is usually the first failure mode.

How do I size the enclosure?

Add up the DIN-rail module widths you need, then allow roughly 20-30 % spare rail and enough depth for wiring bends plus any gland plates. Undersizing forces cable routing that damages insulation.

Can the enclosures be supplied with a custom cut-out layout?

Yes. Custom drilling, cut-outs, silk-screen printing and pre-assembled internal rails can be arranged on qualified volumes.

Is ventilation needed in the panel?

Only if the internal heat load raises the temperature beyond the components' rating. Add the total dissipation of the devices, then choose filtered fans or louvers to keep the internal temperature within the rated ambient.
