About the TC Terminal Connector
The TC Terminal Connector is part of the ELEHPD Terminal Block range. TC SERIES FIXED TERMINAL BLOCKS Sliecting thermosetting plastic, safety factor of big current is more reliable. Board type screw crinm commecting technology as structure parts. rated AC voltage 600V. rated current of connecting conduct piece with seven specifications of 60、100、150、200、300、400、600A. the cross-section 10~300mm2, which is the biggest closure flow terminal. It can be divided into 3P、4P flat bolt installation according to arrangement, it will be more reliable with OT、UTtermination point for connecting big current in different kind electric device. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Panel wiring and control cabinet assembly
- Field installation of power and signal cabling
- OEM harness and cable assembly production
- Marine, rail and outdoor installations needing vibration resistance
- Retrofit and maintenance kits for contractors
How to specify the right Terminal Block
- Match the conductor cross-section to the terminal's rated capacity
- Confirm the clamping technology: screw, spring-cage or push-in
- Check the rated voltage and the insulation material for the ambient temperature
- Select the housing colour coding used in your panel standard
Specifications

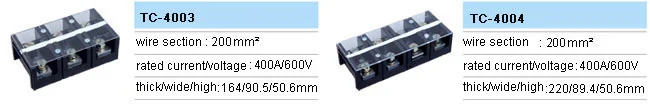

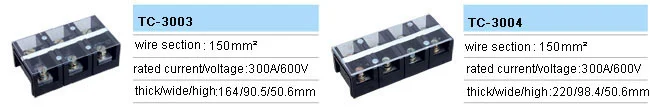

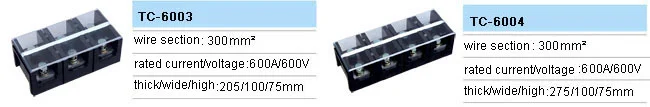

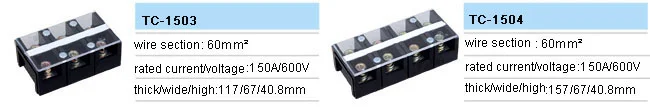

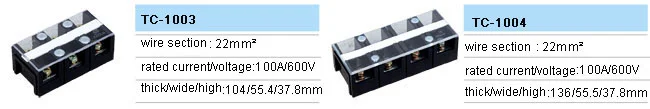

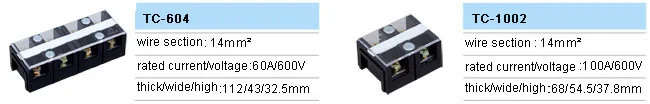

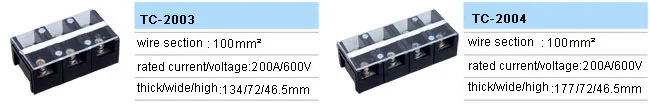

| TC SERIES FIXED TERMINAL BLOCKS |
Sliecting thermosetting plastic, safety factor of big current is more reliable. Board type screw crinm commecting technology as structure parts. rated AC voltage 600V. rated current of connecting conduct piece with seven specifications of 60、100、150、200、300、400、600A. the cross-section 10~300mm2, which is the biggest closure flow terminal. It can be divided into 3P、4P flat bolt installation according to arrangement, it will be more reliable with OT、UTtermination point for connecting big current in different kind electric device. |
|
Frequently asked questions about the TC Terminal Connector
What wire range does this accept?
The accepted conductor range is listed in the specification table above. If your conductor is outside that range, contact us with the cable size and we will recommend the correct frame.
Are these suitable for high-vibration installations?
Spring-cage and push-in terminations resist loosening better than plain screw terminals under vibration. Specify the spring type for mobile, marine or rail applications.
Can I order mixed sizes in one shipment?
Yes. Mixed-size and mixed-colour orders are normal for this product family; send your picking list and we will quote the combined quantity.
What packaging do they ship in?
Standard export cartons with the quantity per box shown on the label. Custom labelling and buyer-branded boxes are available on qualified volumes.
