PCU Distribution Box

About the PCU Distribution Box

The PCU Distribution Box is part of the ELEHPD Box range. PCU Distribution Box from the ELEHPD Box range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Distribution boards in residential and commercial buildings
Industrial panel building and machine enclosures
Outdoor and wet-area installations
Panel thermal management and dust filtration
Site power distribution and temporary supply

How to specify the right Box

Set the IP rating from the environment: IP20 indoors, IP65 for wash-down or outdoor
Size the enclosure around the DIN-rail modules plus wiring space and gland entry
Check the material: sheet steel, stainless or insulating polycarbonate
Confirm the internal temperature rise and whether ventilation or filtering is needed

Specifications

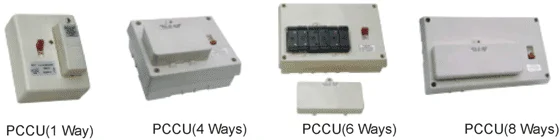

PZ30PC(PCCU) series is the assembly systyem made after the plant standards.Applying cold rolling process.it can be used in the fimal sub-circuits of various voltages,There are two kinds of mounting of the box,
hidden and open.

Frequently asked questions about the PCU Distribution Box

Which IP rating do I need for outdoor installation?

IP65 is the practical minimum for exposed outdoor use and IP66 for wash-down areas. In coastal or chemically aggressive sites also confirm the material and finish, since corrosion is usually the first failure mode.

How do I size the enclosure?

Add up the DIN-rail module widths you need, then allow roughly 20-30 % spare rail and enough depth for wiring bends plus any gland plates. Undersizing forces cable routing that damages insulation.

Can the enclosures be supplied with a custom cut-out layout?

Yes. Custom drilling, cut-outs, silk-screen printing and pre-assembled internal rails can be arranged on qualified volumes.

Is ventilation needed in the panel?

Only if the internal heat load raises the temperature beyond the components' rating. Add the total dissipation of the devices, then choose filtered fans or louvers to keep the internal temperature within the rated ambient.
