ZP Stud Rectifier Diode

About the ZP Stud Rectifier Diode

The ZP Stud Rectifier Diode is part of the ELEHPD Thyristor And Rectifier range. ZP Stud Rectifier Diode from the ELEHPD Thyristor And Rectifier range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Industrial control panels and PLC power rails
LED drivers, signage and display power
Battery charging and DC backup systems
Motor drives, welding sets and rectifier assemblies
Instrumentation and test equipment

How to specify the right Thyristor And Rectifier

Size the output current with at least 20-30 % headroom over the load
Check the input range covers the local supply, including brown-outs
Confirm the enclosure and cooling method for the panel temperature
Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

普通整流管 Rectifier Diodes (ZP Stud model)

特征	Features
■正向平均电流5-500A	■IF(AV)=5-500A
■反向重复峰值电压:100-5000V	■V RRM=100-5000V
■金属螺柱型结构	■Hermetic metal case with ceramic insulator
■全封闭陶瓷-金属螺柱型结构	■Hermetic glass-metal seal
■符号JB/T8949.2-1999标准	■Conform to partial national standard JB/T8949.2-1999
■承受高浪涌电流能力	■Capacity of supporting high surge current
■螺栓为阴极或阳极的正向或反向结构	■Stud cathode and stud anode version

典型应用	Typical Applications
■AC/DC变换器	■AC/DC Converters
■直流电源	■DC power supplies
■机床控制	■Mechine tool controls

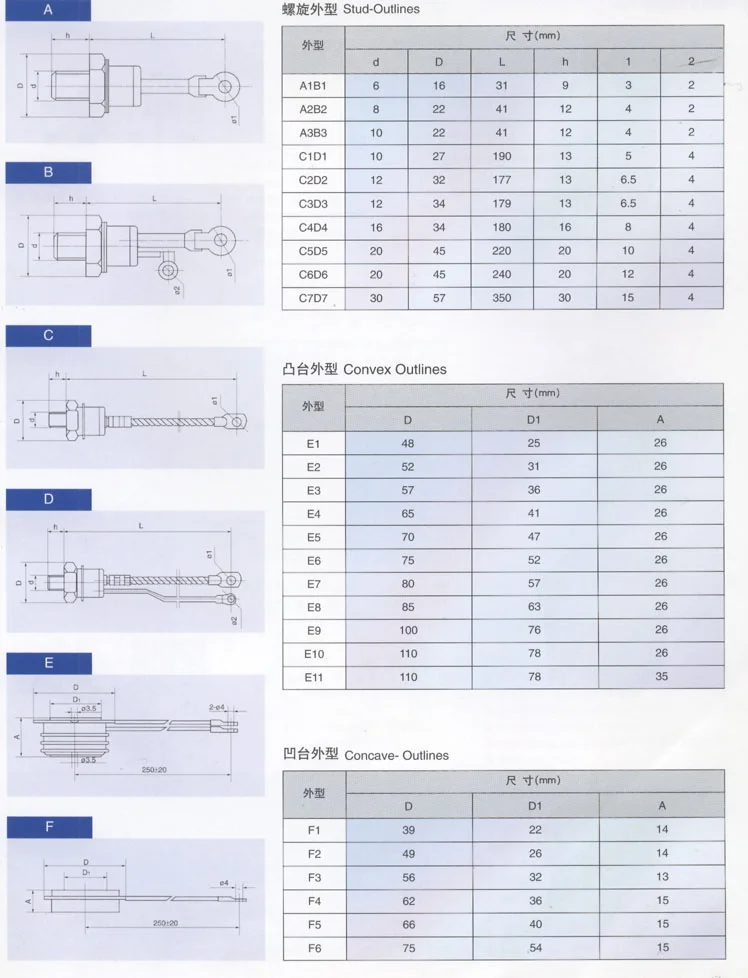

型号Type	正向平均电流	正向有效值电流	正向峰值电压	反向重复峰值电压	反向重复峰值电流	结壳热阻	工作结温	重量	外形
IF(AV) A	IFRMS A	VFM V	VRRM V	IRRM mA	Rjc ℃/W	Tj ℃	Wejght g	Outline
ZP5A	5	7.9	≤1.6	100～5000	≤2	≤4.0	-40～150	10	A1
ZP10A	10	16	≤1.6	100～5000	≤2	≤2.5	-40～150	25	A2
ZP20A	20	31	≤1.6	100～5000	≤6	≤1.4	-40～150	27	A3/C1
ZP30A	30	47	≤1.6	100～5000	≤6	≤1.0	-40～150	110	C2
ZP50A	50	79	≤1.6	100～5000	≤12	≤0.6	-40～150	140	C3
ZP100A	100	160	≤1.8	100～5000	≤12	≤0.3	-40～150	205	C4
ZP200A	200	310	≤1.8	100～5000	≤12	≤0.2	-40～150	325	C5
ZP300A	300	470	≤1.8	100～5000	≤15	≤0.11	-40～150	470	C6
ZP500A	500	630	≤1.8	100～5000	≤15	≤0.068	-40～150	925	C7

Frequently asked questions about the ZP Stud Rectifier Diode

How much headroom should I leave on the power rating?

For continuous industrial duty plan on 20-30 % headroom above the measured load. For loads with high inrush, such as motors or capacitive input, allow more and check the surge rating rather than only the average current.

Do these units accept 110 V and 230 V mains?

Input ranges are model-specific and shown in the specification table. Where a wide-range input is available it is stated; otherwise send your mains voltage and we will match the model.

What protection features are built in?

Typical protection covers short circuit, over-current, over-voltage and thermal shutdown. The exact set is listed per model in the specification table above.

Can you supply matching DIN-rail or enclosed versions?

Open-frame, enclosed and DIN-rail variants exist across this family. Send the model you are working from and we will confirm the equivalent mounting option.
