About the RL6 Series screw-type fuse
The RL6 Series screw-type fuse is part of the ELEHPD Fuse range. It is applicable circuit of AC50Hz (or 60Hz), rated voleage up to AC500V, rated current up to 63Aused for the function of the protection against short cirucit or overload fot electrical installation. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Consumer units and distribution boards in residential buildings
- Commercial and retail fit-outs where selective protection is required
- Industrial control panels and machine-builder assemblies
- Solar PV, EV charger and battery-storage sub-circuits
- OEM equipment where a DIN-rail protective device is specified
How to specify the right Fuse
- Match the rated current to the circuit design current, then check the cable ampacity
- Pick the trip curve to the load: B for resistive/lighting, C for general mixed loads, D for motors and transformers
- Confirm the breaking capacity meets the prospective short-circuit current at the point of installation
- Verify the pole configuration (1P, 1P+N, 2P, 3P, 3P+N, 4P) against the system earthing arrangement
Specifications

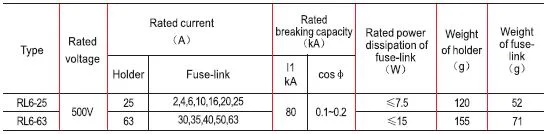

RL6 Series Ccrew-type Fuse
|
| |
|
|
| Scope of application |
|
It is applicable circuit of AC50Hz (or 60Hz), rated voleage up to AC500V, rated current up to 63Aused for the function of the protection against short cirucit or overload fot electrical installation. |
|
|

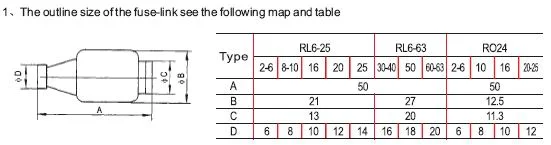

| Outline and installation size |
|
|
|
