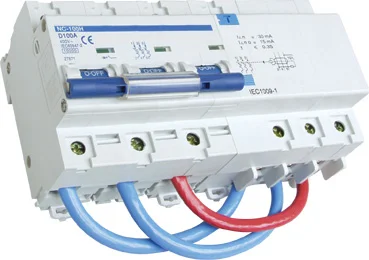

NC100LE RCBO

About the NC100LE RCBO

The NC100LE RCBO is part of the ELEHPD RCBO range. NC100LE RCBO from the ELEHPD RCBO range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Consumer units and distribution boards in residential buildings
Commercial and retail fit-outs where selective protection is required
Industrial control panels and machine-builder assemblies
Solar PV, EV charger and battery-storage sub-circuits
OEM equipment where a DIN-rail protective device is specified

How to specify the right RCBO

Match the rated current to the circuit design current, then check the cable ampacity
Pick the trip curve to the load: B for resistive/lighting, C for general mixed loads, D for motors and transformers
Confirm the breaking capacity meets the prospective short-circuit current at the point of installation
Verify the pole configuration (1P, 1P+N, 2P, 3P, 3P+N, 4P) against the system earthing arrangement

Specifications

NC100LE 1P RCBO

NC100LE 3P RCBO

NC100LE Residual Current Circuit Breaker with Over Current Protection

Application

NC100LE RCBO is suitable for the circuit of 50Hz, rated voltage 230/400V, and rated current up to 100A. It has the earth leakage, overload & short circuit protect function. It can also add over voltage protect function. It is mainly used in building illumination and electrical distribution system.

Specifications

Number of Poles	1P+N, 2P, 3P, 3P+N, 4P
Rated Current (A)	40, 50, 63, 80, 100
Rated Residual Operating Current ()(mA)	30, 50, 100, 200, 300
Rated Residual Non-operation Current (o)(mA)	≤0.5
Rated Voltage (V)	AC 230/400
Residual Current Off-time	≤0.1S
Short Circuit Capacity (Icu)	3000A
Endurance	≥4000
Tripping Curve	C, D
Protection Degree	IP20

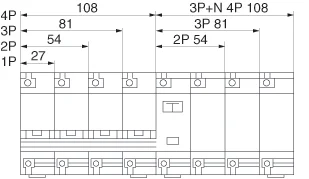

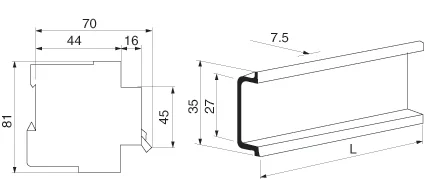

Overall And Mounting Dimensions (Unit: mm)
