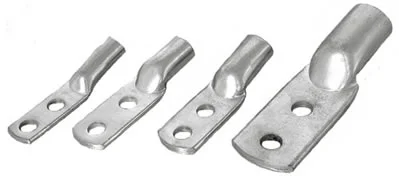

About the JG Copper Terminal
The JG Copper Terminal is part of the ELEHPD Copper Terminal range. Type Ø D d L JG-10 6.2 8 5 38 JG-16 8.4 9 6 41 JG-25 8.4 10 7 46 JG-35 8.5 11 8 52 JG-50 8.5 13 10 54 JG-70 10.5 16 12 61 JG-95 10.5 18 14 66 JG-120 12.5 20 15 73 JG-150 12.5 23 17 77 JG-185 14.5 25 19 86 JG-240 16.5 27 21 93 JG-300 16.5 31 24 103 JG-400 18.5 34 26 113 JG-500 20.5 38 30 124 JG-630 22.5 45 35 140 JG-800 22.5 50 40 170 ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Panel wiring and control cabinet assembly
- Field installation of power and signal cabling
- OEM harness and cable assembly production
- Marine, rail and outdoor installations needing vibration resistance
- Retrofit and maintenance kits for contractors
How to specify the right Copper Terminal
- Match the conductor cross-section to the terminal's rated capacity
- Confirm the clamping technology: screw, spring-cage or push-in
- Check the rated voltage and the insulation material for the ambient temperature
- Select the housing colour coding used in your panel standard
Specifications
COPPER CONNECTING TERMINALS
![]()
![]()
![]()
| Type |
Ø |
D |
d |
L |
| JG-10 |
6.2 |
8 |
5 |
38 |
| JG-16 |
8.4 |
9 |
6 |
41 |
| JG-25 |
8.4 |
10 |
7 |
46 |
| JG-35 |
8.5 |
11 |
8 |
52 |
| JG-50 |
8.5 |
13 |
10 |
54 |
| JG-70 |
10.5 |
16 |
12 |
61 |
| JG-95 |
10.5 |
18 |
14 |
66 |
| JG-120 |
12.5 |
20 |
15 |
73 |
| JG-150 |
12.5 |
23 |
17 |
77 |
| JG-185 |
14.5 |
25 |
19 |
86 |
| JG-240 |
16.5 |
27 |
21 |
93 |
| JG-300 |
16.5 |
31 |
24 |
103 |
| JG-400 |
18.5 |
34 |
26 |
113 |
| JG-500 |
20.5 |
38 |
30 |
124 |
| JG-630 |
22.5 |
45 |
35 |
140 |
| JG-800 |
22.5 |
50 |
40 |
170 |
Application:These products are appliable to the connection of wires in distribution equipment power supply cable with electronic appawatus,it is made of (T2) copper tube by die cast and coated tin.
These products are appliable to the connection of wires in distribution equipment power supply cable with electronic apparatus,it is made of (T2) copper tube by die cast and coated tin.
Frequently asked questions about the JG Copper Terminal
What wire range does this accept?
The accepted conductor range is listed in the specification table above. If your conductor is outside that range, contact us with the cable size and we will recommend the correct frame.
Are these suitable for high-vibration installations?
Spring-cage and push-in terminations resist loosening better than plain screw terminals under vibration. Specify the spring type for mobile, marine or rail applications.
Can I order mixed sizes in one shipment?
Yes. Mixed-size and mixed-colour orders are normal for this product family; send your picking list and we will quote the combined quantity.
What packaging do they ship in?
Standard export cartons with the quantity per box shown on the label. Custom labelling and buyer-branded boxes are available on qualified volumes.
