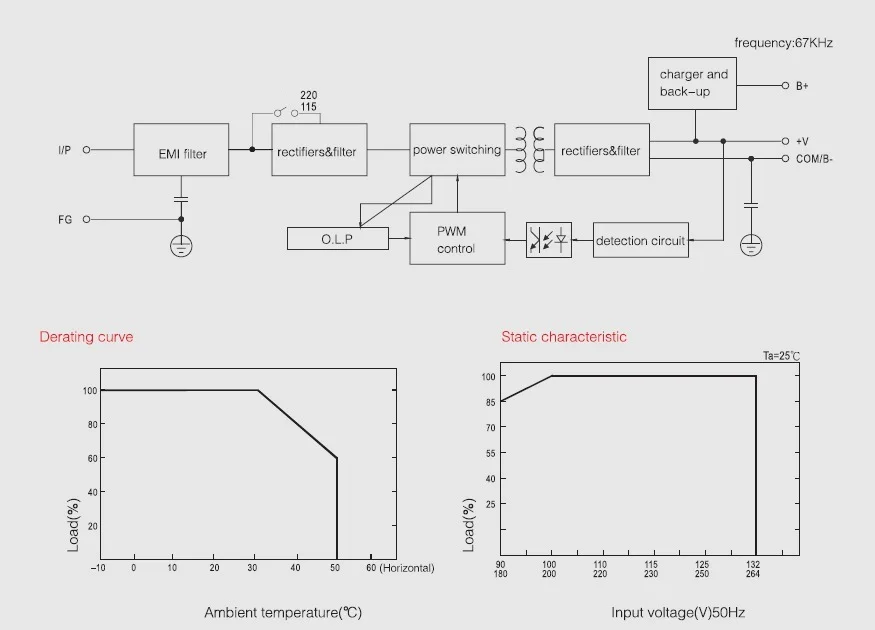

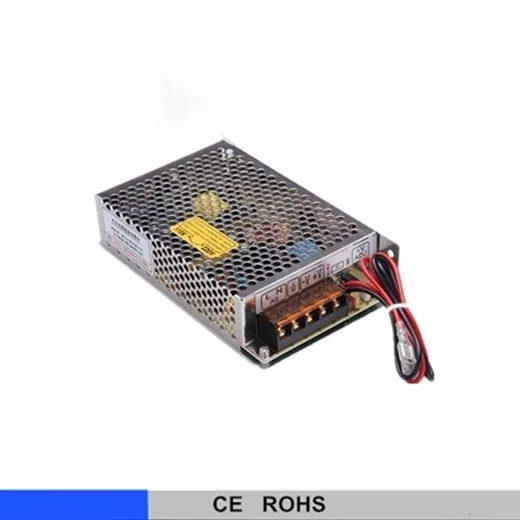

UPS power supply with charger switching power supply SC-120W

Features:·universal AC input

·Small volume,low weight,high efficiency

·Protections:short circuit/over load

·Indicator for power on/charge/normal(LED)

·100% full load burn-in test

·Battery protection at low voltage

·2 Year warranty

Model	SC-120-12	SC-120-24
output	DC voltage	CH1:13.8V	CH1:13.4V	CH1:27.6V	CH2:26.5V
Voltage tolerance	±1%	-----	±1%	-----
Rated current	8A	0.5A	4A	0.3A
Current range	0~8A	-----	0~4A	-----
Rated power	117.1W	118.4W
Ripple&noise	120mvp-p	-----	180mvp-p	-----
DCvoltage ADJ.range	CH1:11.3~14.9V	CH1:21.3~29.8V
input	Voltage range	90~264VAC,127~370VDC
frequency	47~63HZ
AC current	2.8A/115VAC,1.4A/230VAC
efficiency	81%	83%
Inrush current	Cold start current 30A/115VAC,50A/230VAC
Leakage current	< 1mA/240VAC
protection	Over load	Rated output power110%~150% start over load protection
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
Battery protection At low voltage	9.5~11V	20~22V
protection mode:cutoff output
Function	UPS introduction	long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Compliance to UL60950-1
EMC standard	Compliance to EN55022,CLASSB

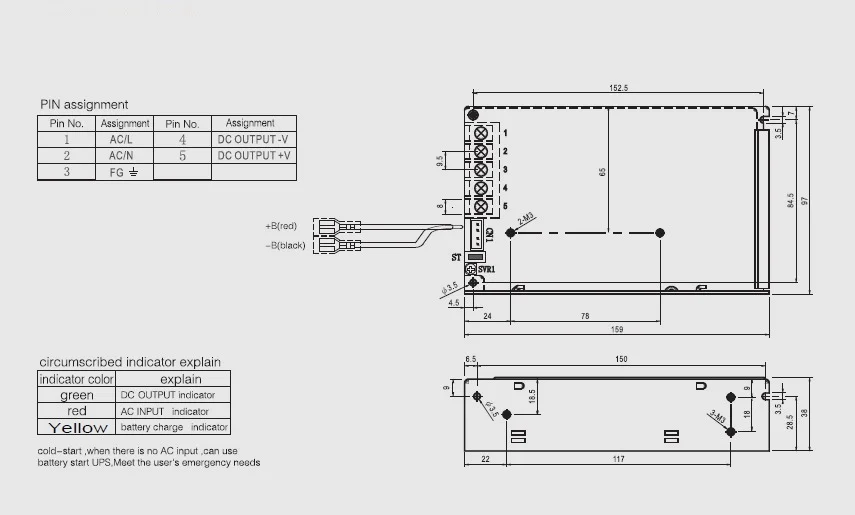

others	Dimension	1599738mm (LWH)
Weight/packing	0.56kg/45pcs/26kg/0.041m³/1.45CUFT
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
