About the KS Disc Bi-directional Thyristor
The KS Disc Bi-directional Thyristor is part of the ELEHPD Thyristor And Rectifier range. KS Disc Bi-directional Thyristor from the ELEHPD Thyristor And Rectifier range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Industrial control panels and PLC power rails
- LED drivers, signage and display power
- Battery charging and DC backup systems
- Motor drives, welding sets and rectifier assemblies
- Instrumentation and test equipment
How to specify the right Thyristor And Rectifier
- Size the output current with at least 20-30 % headroom over the load
- Check the input range covers the local supply, including brown-outs
- Confirm the enclosure and cooling method for the panel temperature
- Verify the protection set: over-current, over-voltage, thermal and short circuit
Specifications
![]()
| 双向晶闸管 Bi-directional Triode Thyristors (KS Disc model) |
|
型号
Type
|
VDRMVRRM |
IT(RMS) |
ITSM |
dV/dt |
di/dt |
IDRMIRRM |
IGT |
VGT |
IH |
VTM/ITM |
RTH(j-hs) |
Tjm |
安装力 |

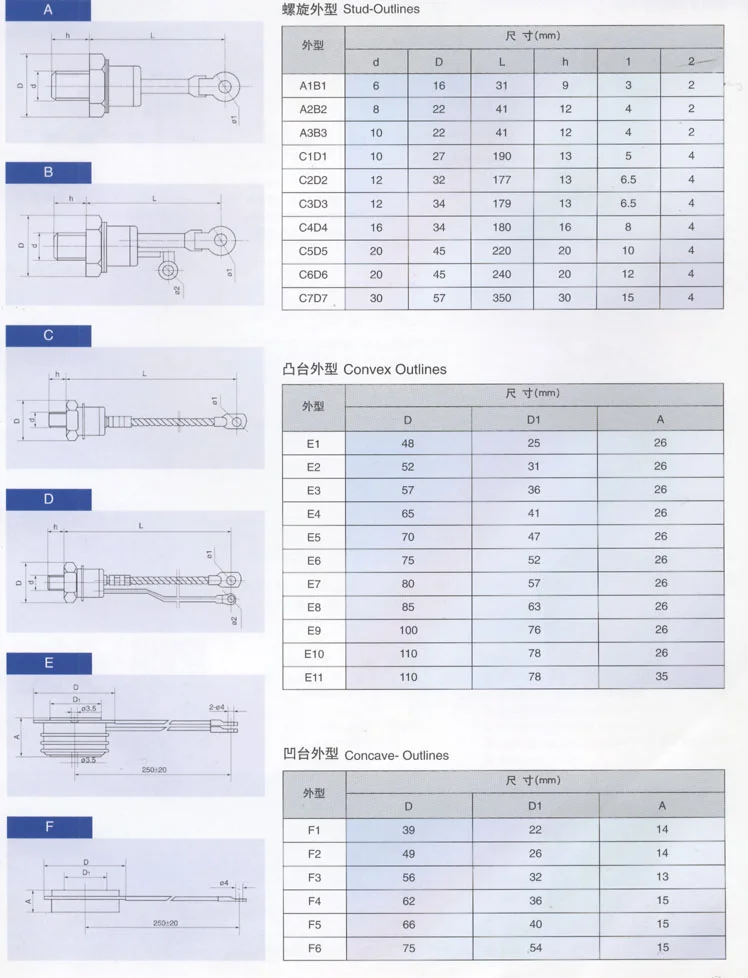

外形
Outline
（Fig） |
|
|
THS55℃ |
10ms |
|
|
|
25℃ |
|
|
|
|
V |
A |
kA |
V/μs |
A/μs |
mA |
mA |
V |
mA |
V/A |
℃/W |
℃ |
KN |
|
KS200A |
100-2000 |
200 |
1.7 |
50 |
50 |
20 |
20-200 |
0.8-2.5 |
20-200 |
2.4/300 |
0.120 |
125 |
3.3-5.5 |
19 |
|
KS300A |
100-2000 |
300 |
2.5 |
50 |
50 |
30 |
20-200 |
0.8-2.5 |
20-200 |
2.4/500 |
0.065 |
125 |
5.3-10 |
20 |
|
KS500A |
100-2000 |
500 |
4 |
50 |
50 |
40 |
20-300 |
0.8-3.0 |
20-300 |
2.4/700 |
0.040 |
125 |
10-20 |
21 |
|
KS600A |
100-2000 |
600 |
4.2 |
50 |
50 |
40 |
20-300 |
0.8-3.0 |
20-300 |
2.4/900 |
0.035 |
125 |
10-20 |
1 |
|
KS800A |
100-2000 |
800 |
6.8 |
50 |
50 |
50 |
20-300 |
0.8-3.5 |
20-400 |
2.4/1200 |
0.035 |
125 |
15-20 |
1 |
| 特点 |
典型应用 |
说明 |
| ■ 全扩散工艺 |
■ 无触点交流开关 |
■ IGT、VGT、IH为25℃测试值，除非另作说明， |
| ■ 平板型陶瓷管封装 |
■ 交流功率的调节和控制 |
参数表中其它参数皆为在Tjm下的测试值 |
| ■ 中心门极 |
|
■ ITRMS为元件额定电流有效值 |
| ■ 双面冷却 |
|
■ I2t=I2TSM×tw/2:tw=正弦半波电流底宽。 |
| ■ 等效二只普通晶闸管反并联 |
|
在50Hz下，I2t=0.005I2TSM(A2S) |
| ■ 通过适当的门极电流，正反向均可导通 |
|
■ 当使用在电流为60Hz情况下： |
| |
|
ITSM(8.3ms)=ITSM(10ms)×1.066,Tj=Tjm |
| |
|
I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm |
| |
|
■ 门极引线：白色或无色 | | ![]() |
Frequently asked questions about the KS Disc Bi-directional Thyristor
How much headroom should I leave on the power rating?
For continuous industrial duty plan on 20-30 % headroom above the measured load. For loads with high inrush, such as motors or capacitive input, allow more and check the surge rating rather than only the average current.
Do these units accept 110 V and 230 V mains?
Input ranges are model-specific and shown in the specification table. Where a wide-range input is available it is stated; otherwise send your mains voltage and we will match the model.
What protection features are built in?
Typical protection covers short circuit, over-current, over-voltage and thermal shutdown. The exact set is listed per model in the specification table above.
Can you supply matching DIN-rail or enclosed versions?
Open-frame, enclosed and DIN-rail variants exist across this family. Send the model you are working from and we will confirm the equivalent mounting option.
