About the ZK Disc Fast Recovery Diode
The ZK Disc Fast Recovery Diode is part of the ELEHPD Thyristor And Rectifier range. ZK Disc Fast Recovery Diode from the ELEHPD Thyristor And Rectifier range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Industrial control panels and PLC power rails
- LED drivers, signage and display power
- Battery charging and DC backup systems
- Motor drives, welding sets and rectifier assemblies
- Instrumentation and test equipment
How to specify the right Thyristor And Rectifier
- Size the output current with at least 20-30 % headroom over the load
- Check the input range covers the local supply, including brown-outs
- Confirm the enclosure and cooling method for the panel temperature
- Verify the protection set: over-current, over-voltage, thermal and short circuit
Specifications
![]()
| 快速整流管 Fast Recovery Diodes (ZK Disc model) |
|
型号
Type
|
VDRMVRRM |
If(AV) |
trr |
Qrr |
IFSM |
IRRM |
VFM/IFM |
RTH(j-hs) |
Tjm |
安装力
|

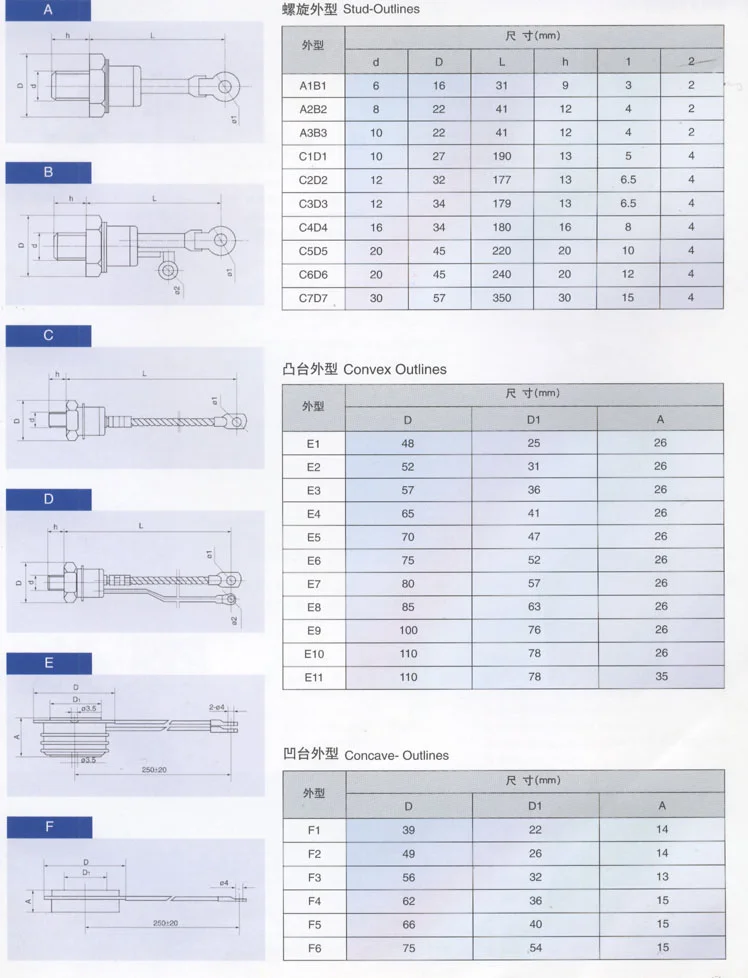

外形
Outline
（Fig） |
|
|
THS55℃ |
100℃ |
|
100ms |
|
25℃ |
|
|
|
V |
A |
μs |
μs |
KA |
mA |
V/A |
℃/W |
℃ |
KN |
|
ZK200A |
100-5000 |
200 |
2 |
70 |
2.7 |
16 |
2.2/600 |
0.090 |
150 |
3.3-5.5 |
19 |
|
ZK300A |
100-5000 |
300 |
3 |
100 |
4.1 |
30 |
2.4/900 |
0.065 |
150 |
5.3-10 |
20 |
|
ZK400A |
100-5000 |
400 |
3 |
100 |
5.4 |
40 |
2.4/1200 |
0.040 |
150 |
10-20 |
21 |
|
ZK500A |
100-5000 |
500 |
3 |
120 |
8 |
40 |
2.4/1800 |
0.033 |
150 |
10-20 |
1 |
|
ZK800A |
100-5000 |
800 |
3 |
130 |
10 |
40 |
2.6/2400 |
0.033 |
150 |
10-20 |
1 |
|
ZK1000A |
100-5000 |
1000 |
4 |
150 |
13 |
50 |
2.6/3000 |
0.030 |
150 |
15-20 |
1 |
| 特点 |
典型应用 |
说明 |
| ■ 扩散结 |
■ 电机控制和驱动 |
■ 除非另作说明，参数表中其它参数皆为在Tjm下的测 |
| ■ 短恢复时间 |
■ 感应加热 |
试值。 |
| ■ 很小的反向恢复电荷 |
■ UPS电源 |
■ I2t=I2FSM×tw/2；tw=正弦半波电流底宽。 |
| ■ 具有快速软恢复特性 |
■ 斩波器 |
在50Hz下，I2t=0.005I2FSM(A2S) |
| ■ 平板型陶瓷管封装 |
■ 焊接设备 |
■ 当使用在电流为60Hz情况下： |
| ■ 双面冷却 |
|
IFSM(8.3ms)=IFSM(10ms)×1.066,Tj=Tjm |
| |
|
I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm |
| |
|
| | |
![]()
Frequently asked questions about the ZK Disc Fast Recovery Diode
How much headroom should I leave on the power rating?
For continuous industrial duty plan on 20-30 % headroom above the measured load. For loads with high inrush, such as motors or capacitive input, allow more and check the surge rating rather than only the average current.
Do these units accept 110 V and 230 V mains?
Input ranges are model-specific and shown in the specification table. Where a wide-range input is available it is stated; otherwise send your mains voltage and we will match the model.
What protection features are built in?
Typical protection covers short circuit, over-current, over-voltage and thermal shutdown. The exact set is listed per model in the specification table above.
Can you supply matching DIN-rail or enclosed versions?
Open-frame, enclosed and DIN-rail variants exist across this family. Send the model you are working from and we will confirm the equivalent mounting option.
