CDS Current Transformer

About the CDS Current Transformer

The CDS Current Transformer is part of the ELEHPD Current Transformer range. CDS Current Transformers CDS Series: Primary current: Secondary approval: Standard current: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient: -High fire retardancy and security -Wide range of sizes to accommodate all the existing installations Specification: Model Primary / secondary (A) CDS-40 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 60 ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Industrial control panels and PLC power rails
LED drivers, signage and display power
Battery charging and DC backup systems
Motor drives, welding sets and rectifier assemblies
Instrumentation and test equipment

How to specify the right Current Transformer

Size the output current with at least 20-30 % headroom over the load
Check the input range covers the local supply, including brown-outs
Confirm the enclosure and cooling method for the panel temperature
Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

CDS Current Transformers

CDS Series:

Primary current:
Secondary approval:
Standard current:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:
-High fire retardancy and security
-Wide range of sizes to accommodate all the existing installations

Specification:

Model	Primary / secondary (A)
CDS-40	100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5A
CDS-60	300/5, 400/5, 500/5, 600/5, 750/5, 800/5, 1000/5, 1200/5A
CDS-80	500/5, 600/5, 750/5, 800/5, 1000/5, 1200/5, 1500/5, 1600/5A
CDS-100	600/5, 750/5, 800/5, 1000/5, 1200/5, 1500/5, 1600/5, 2000/5A, 2500/5, 3000/5A
CDS-120	1000/5, 1200/5, 1500/5, 1600/5, 2000/5, 2500/5, 3000/5, 4000/5A, 5000/5

Dimension of case (mm):

Model	Dimensions	Busbar hole dimension	Installation dimension
W	H	D	A	E	M
DS-40	75	105	45	42	32	45
DS-60	98	116	45	62	32	42
DS-80	118	120	45	82	32	60
DS-100	140	130	49	102	32	80
DS-120	165	152	49	122	53	80

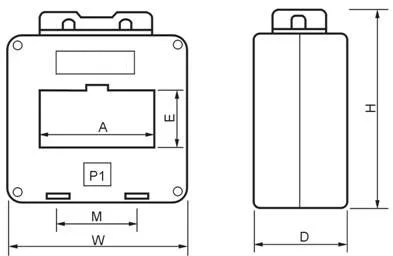

outline drawing:
