DD28 Single Phase Watt-Hour Meter

About the DD28 Single Phase Watt-Hour Meter

The DD28 Single Phase Watt-Hour Meter is part of the ELEHPD KWH Meter range. APPLICATION DD28 (DD17) Single Phase Watt-hour Meter is an induction meter which is applicable to measure the rated frequency of 50Hz. It has the features of small volume,tightly structure design,low power loss etc.All technical conformed to National Standard GB/T 15283-94 idt International Standard IEC 521. STRUCTURE FEATURES The meter has separable electromagnet and the bearing have four ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right KWH Meter

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

APPLICATION

DD28 (DD17) Single Phase Watt-hour Meter is an induction meter which is applicable to measure the rated frequency of 50Hz. It has the features of small volume,tightly structure design,low power loss etc.All technical conformed to National Standard GB/T 15283-94 idt International Standard IEC 521.

STRUCTURE FEATURES

The meter has separable electromagnet and the bearing have four kinds:single-jewel,dualjewel,magnetic thrust and magnetic floating. The case have four kinds:aluminium,plastic,glass and poly carbonate.The discasting frame is alloy aluminium with excellnet mechanical intensity.

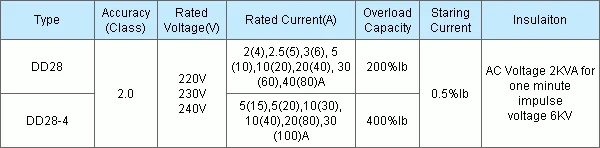

SPECIFICATIONS & MODELS
