DT862 Three Phase Watt-Hour Meter

About the DT862 Three Phase Watt-Hour Meter

The DT862 Three Phase Watt-Hour Meter is part of the ELEHPD KWH Meter range. DT862 Three Phase Watt-Hour Meter from the ELEHPD KWH Meter range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right KWH Meter

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

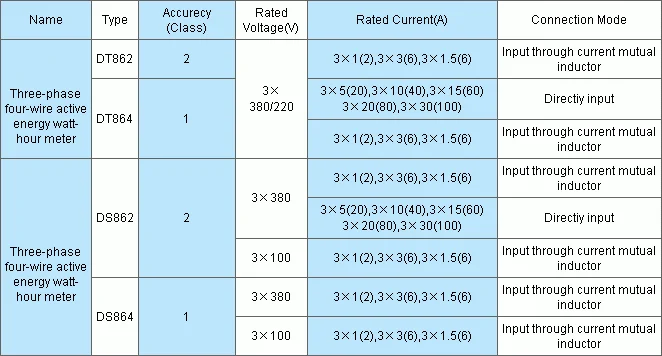

Specifications

APPLICATION

DT862 series of Three Phase Active Energy Watt-hour Meter and reactive energy watt-hour are induction meters which are applicable to measure the rated frequency 50Hz and the active and reactive power loss of three-phase intercourse grid. The technique are completely conformed to National Standard GB/T15283-94 idt IEC521.All technical targets of reacitve energy meters are completely to National Standard GB/T15283-94.

Frequently asked questions about the DT862 Three Phase Watt-Hour Meter

What is the difference between a contactor and a relay?

A contactor is built for switching power circuits repeatedly at high current, often with motor duty ratings (AC-3) and arc-suppressing chambers. A relay switches control signals at low current. In practice: contactor for the motor, relay in the control circuit that drives the contactor coil.

How do I calculate the correct contactor size for a motor?

Use the motor's full-load current, apply the AC-3 rating for the operating voltage, and allow for the number of starts per hour. As a rule of thumb, the contactor's AC-3 rating should be at least equal to the motor FLC, then step up one frame if the duty is heavy.

Do you supply the coil voltage I need?

Coil voltages are specified per order. Send the model number, coil voltage and frequency you require and we will confirm availability and lead time.

Are auxiliary contacts included?

Base models come with the standard auxiliary contact configuration for that frame. Add-on auxiliary blocks and mechanical interlocks can be quoted with the contactor.
