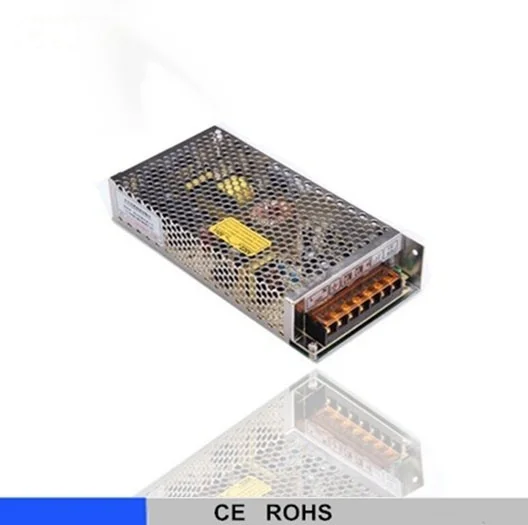

About the Single Output Switching mode power supply for

The Single Output Switching mode power supply for is part of the ELEHPD S Series range. 180W Single Output Switching mode power supply Features: • AC input range selectable by switch • Protections:Short circuit/Over load/Over voltage • Cooling by free air convection • 100% full load burn-in test • Fixed switching frequency at 25KHz • 2 years warranty ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: 180W Single Output Switching mode power supply 5v 12v 24v 13.5v 27v 7.5v 36v 48v for LED Strip light AC to DC

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right S Series

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

180W Single Output Switching mode power supply

Features :

• AC input range selectable by switch

• Protections:Short circuit/Over load/Over voltage

• Cooling by free air convection

• 100% full load burn-in test

• Fixed switching frequency at 25KHz

• 2 years warranty

MODEL	S-180-5	S-180-7.5	S-180-10	S-180-12	S-180-13.5	S-180-15	S-180-24	S-180-27	S-180-48
DC VOLTAGE	5V	7.5V	10V	12V	13.5V	15V	24V	27V	48V
RATED CURRENT	36A	24A	18A	15A	13.3A	12A	7.5A	6.6A	3.75A
CURRENT RANGE	0 ~ 36A	0 ~ 24A	0 ~ 18A	0 ~ 15A	0 ~ 13.3A	0 ~ 12A	0 ~ 7.5A	0 ~ 6.6A	0 ~ 3.75A
RATED POWER	180W	180W	180.3W	180W	181.2W	180W	186W	181.2W	183.6W
RIPPLE & NOISE (max.)	120mVp-p	120mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	240mVp-p	240mVp-p	240mVp-p
VOLTAGE ADJ. RANGE	4.5 ~ 5.5V	6 ~ 8.3V	8 ~ 10.4V	10.6 ~ 13.2V	12 ~ 15V	13.5 ~ 16.5V	21 ~ 28V	24 ~ 30V	43 ~ 53V
VOLTAGE TOLERANCE	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
LINE REGULATION	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
LOAD REGULATION	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
SETUP, RISE, HOLD TIME	100ms, 50ms at full load
HOLD TIME(Typ.)	28ms at full load
VOLTAGE RANGE	88 ~ 132VAC/176 ~ 264VAC selected by switch 248 ~ 370VDC
FREQUENCY RANGE	47 ~ 63Hz
EFFICIENCY (Typ.)	77%	80%	80%	82%	83%	84%	85%	86%	87%
AC CURRENT	3.2A/115VAC 1.6A/230VAC
INRUSH CURRENT (max.)	COLD START 35A
LEAKAGE CURRENT	<3.5mA / 240VAC
OVERLOAD	105 ~ 150% rated output power
Protection type : Shut down o/p voltage, re-power on to recover.
OVER VOLTAGE	5.75 ~ 6.75V	8.63 ~ 10.13V	10.35 ~ 12.2V	13.8 ~ 16.2V	15.53 ~ 18.2V	17.25 ~ 20.3V	30 ~ 34.8V	31.1 ~ 36.45V	55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover.
WORKING TEMP.	-10 ~ +60ºC (Refer to output load derating curve)
WORKING HUMIDITY	20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY	-20 ~ +85ºC, 10 ~ 95% RH
TEMP. COEFFICIENT	±0.03%/ºC (0 ~ 50ºC)
VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS	Design refer to UL1012, UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT	Compliance to EN61000-3-2,-3
EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A
MTBF	286.7K hrs min. MIL-HDBK-217F (25ºC)
DIMENSION	1999838mm (LWH)
PACKING	0.5Kg; 30pcs/13.67Kg/0.0287CMB
