| Model Specification | S-50-5 | S-50-12 | S-50-15 | S-50-24 |
| DC Output voltage | 5V | 12V | 15V | 24V |
| Output voltage range(Note:2) | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 10A | 4.2A | 3.4A | 2.1A |
| Output current range | 0~10A | 0~4.2A | 0~3.4A | 0~2.1A |
| Wave and noise(Note:3) | 75mVp-p | 60mVp-p | 60mVp-p | 50mVp-p |
| Inlet stability(Note:4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability(Note:5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
| DC output power | 50W | 50.4W | 51W | 50.4W |
| Efficiency | 71% | 78% | 78% | 80% |
| Adjustable range for DC voltage | +10,-5% | ±10% | ±10% | ±10% |
| AC input voltage range | 85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC |
| Input current | 1.3A/115V 0.65A/230V |
| AC Inrush current | Cold-start current 18A/115V 36A/230V |
| Leakage current | <0.5mA/240VAC |
| Overload protection | 105%-150% Type: pulsing hiccup shutdown Reset: auto recovery |
| Temperature coefficient | ±0.03%/°C(0~50°C) |
| Setup, rise, hold up time | 200ms, 100ms, 30ms |
| Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes |
| Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |

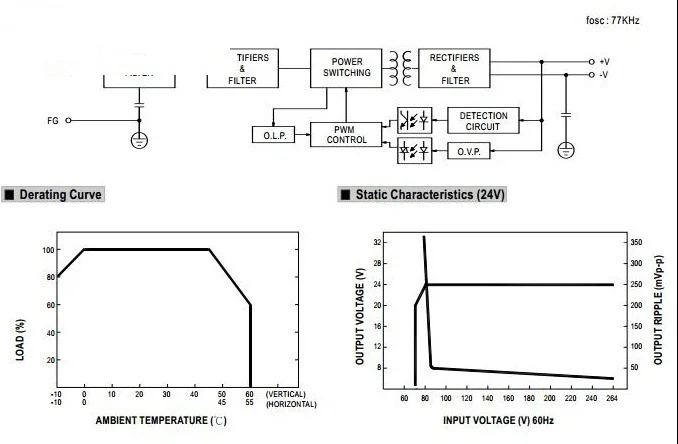

| Working temperature and humidity | -10°C~+60°C(Refer to output load derating curve),20%~90%RH |
| Store temperature and humidity | -20°C~+85°C,10%~95%RH |
| Overall dimension | 159X97X38mm (L*W*H) |
| Weight | 0.5kgS |
| Safety standards | Meet UL 1012 requirement(Not apply for the mark) |
