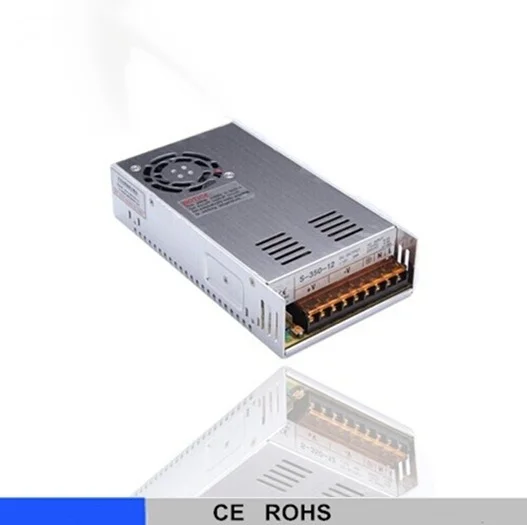

S single output AC DC LED switching power

About the S single output AC DC LED switching power

The S single output AC DC LED switching power is part of the ELEHPD S Series range. Features: • Universal AC input / Full range • Protections:Short circuit/Over load/Over voltage • Forced air cooling by built-in DC fan • PWM control and regulated • Built-in cooling Fan ON-OFF control • 100% full load burn-in test • Fixed switching frequency at 25KHz • Low cost • 2 years warranty ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: S single output 350w AC DC LED switching power supply 12V 24V 5V 15V 27V 48V

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right S Series

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

S single output 350w AC DC LED switching power supply 12V 24V 5V 15V 27V 48V

Features :

• Universal AC input / Full range

• Protections:Short circuit/Over load/Over voltage
• Forced air cooling by built-in DC fan
• PWM control and regulated
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
• Fixed switching frequency at 25KHz
• Low cost
• 2 years warranty

MODEL	S-350-5	S-350-7.5	S-350-12	S-350-13.5	S-350-15	S-350-24	S-350-27	S-350-48
OUTPUT	DC VOLTAGE	5V	7.5V	12V	13.5V	15V	24V	27V	48V
VOLTAGE TOLERANCE	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
RATED CURRENT	50A	40A	29A	25.8A	23.3A	14.6A	13A	7.3A
CURRENTRANGE	0-50A	0-40A	0-29A	0-25.8A	0-23.2A	0-14.6A	0-13A	0-7.3A
RATED POWER	250W	300W	348W	348.5W	348W	350.4W	351W	350.4W
RIPPLE &NOISE(MAX)	120mVp-p	120mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
DC VOLTAGEFRE QUENCY RANGE	0.05
SETUP,RISE,HOLD TIME	200ms,50ms,20ms
INPUT	VOLTAGERANGE	90132 VAC/180264VACselected by switch 4763 Hz254370VDC
AC CURRENT	Cold start 6.5A/115 V 4A/ 230 V
EFFICIENCY	74%	76%	76%	79%	78%	82%	82%	83%
INRUSH CURRENT	25A/115V50A/230V
LEAKAGE CURRENT	3.5 mA/240VAC
PROTECTION	OVERLOAD PROTECTION	105%135% Shut down O/P voltage, re-power on to recover
OVER-VOLTAGE PROTECTION	5.75-6.7	9.4-10.9	13.8-16.2	15.5-18	18-21	27.6-32	33.7-39	56.7-67.2
HIGH TEMPERATURE PROTECTON	...

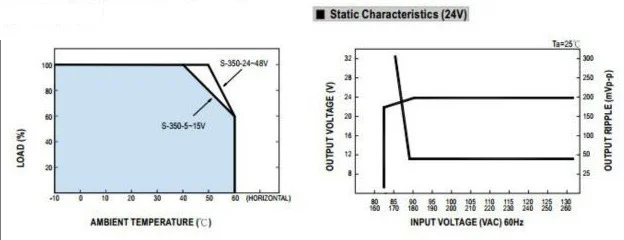

ENVIRONMENT	WORKING TEMP.& HUMIDITY	-10+5020%90 %RH
STORAGE TEMP.& HUMIDITY	-20+8510%95 %RH
VIBRATION	10500Hz,2G 10min./1cycle, period for 60min, each along X.Y.Z axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P1.5KVACI/P-FG1.5KVACO/P-FG0.5KVAC
ISOLATION RESISTANGE	I/P-O/P, I/P-FG, O/P-FG500VDC/100MΩ
STANDARDS	SAFETY STANDARDS	Design refer to UL1950
EMC STANDARDS	Design refer to EN55022,EN55024,EN61000
OTHERS	WEIGHT	1.15Kg
PACKING	12pcs/ 13.8Kg / 0.98CUFT
