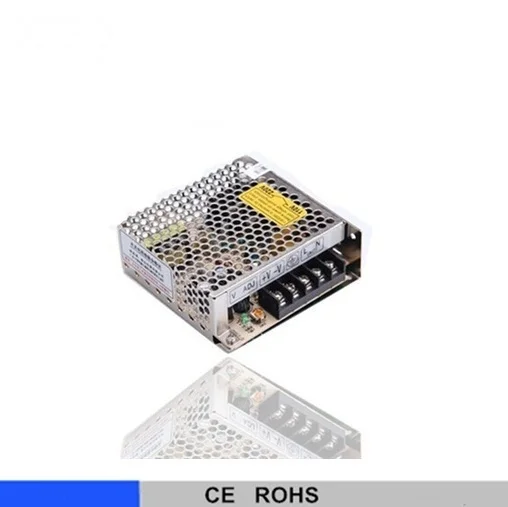

S series single output LED switching power

About the S series single output LED switching power

The S series single output LED switching power is part of the ELEHPD S Series range. Features: • AC input range selected by switch • Protections:Short circuit/Over load • Cooling by free air convection • 100% full load burn-in test • Fixed switching frequency at 37KHz • Lost cost • High reliability • 2 years warranty ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: S series single output LED switching power supply 12v 15v 5v 24v 15w

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right S Series

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

S series single output LED switching power supply 12v 15v 5v 24v 15w

Features :

• AC input range selected by switch

• Protections:Short circuit/Over load

• Cooling by free air convection

• 100% full load burn-in test

• Fixed switching frequency at 37KHz

• Lost cost

• High reliability

• 2 years warranty

Model	S-15-5	S-15-12	S-15-15	S-15-24
DC output voltage	5V	12V	15V	24V
Rated output current	3A	1.3A	1A	0.7A
Output current rage	0-3A	0-1.3A	0-1A	0-0.7A
Wave and noise	50mVp-p	50mVp-p	75mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity	±1%	±0.5%	±0.5%	±0.5%
Efficiency	65%	68%	70%	72%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	AC100~240V 47~63Hz;240~370VDC
Input current	0.5A/115V0.25A/230V
AC INnrush current	Cold-start current 15A/115V 30A/230V
Overload proctection	105%~150% Tpye:Foldback current limiting Reset: auto recovery
Over-voltage protection
Setup rise hold up time	200s,100ms,30ms
Withstand voltage	Input and output internal 1.5KVAC,Input and enclosure 1.5KVAC,Output and enclosure 0.5KVAC
Isolation resistance	Input and output internal Input and enclosure,Output and enclosure 500VDC/100MΩ
Working temperature	-10°C~+50°C

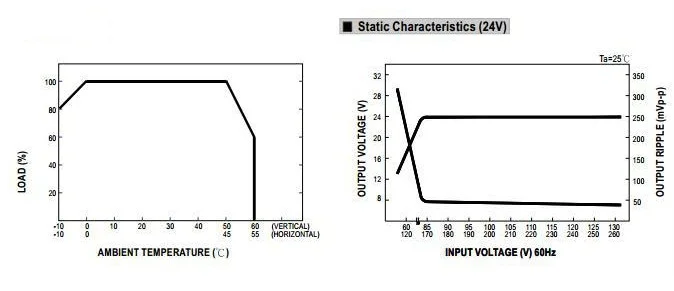

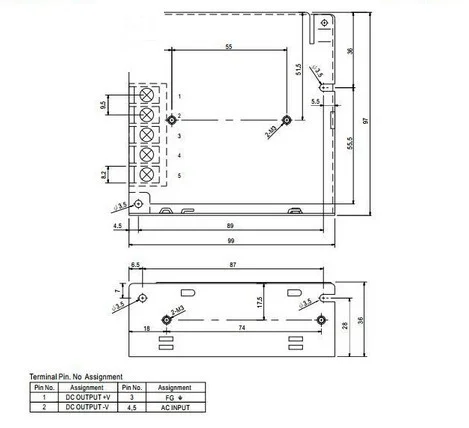

Overall dimension	989735mm
Safety standards	Meet ULGB4943 UL60950 EN60950 requirement
EMC standards	Meet EN55022 GB9254 class A requirement
Weight	0.3Kgs
