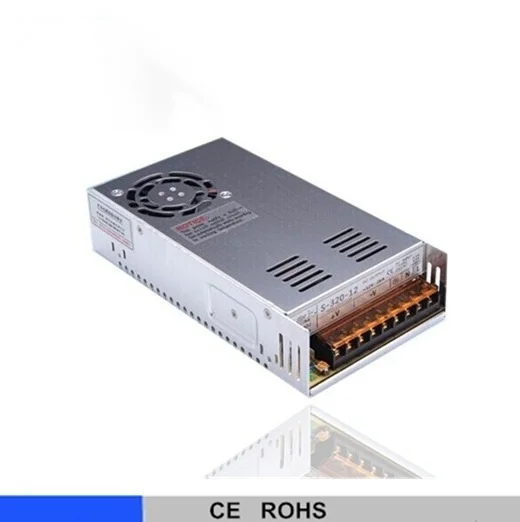

250W Switching power supply

Features :

• AC input range selectable by switch

• Protections:Short circuit/Over load

• Forced air cooling by built-in DC fan

• 100% full load burn-in test

• Fixed switching frequency at 60KHz

• Low cost

• High reliability

• 2 years warranty

SPECIFICATION

Model	S-250-5	S-250-12	S-250-15	S-250-24	S-250-27	S-250-48
Output	DC Voltage	5V	12V	15V	24V	27V	48V
Rated Current	40A	18A	15A	10A	9A	5.2A
Current Range	0~40A	0~18A	0~15A	0~10A	0 ~ 9A	0 ~ 5.2A
Rated Power	200W	216W	225W	240W	243W	249.6W
Ripple & Noise (max.) Note.2	80mVp-p	120mVp-p	120mVp-p	120mVp-p	150mVp-p	200mVp-p
Voltage Adj. Range	4.75~5.5V	10.8~13.2V	13.5~16.5V	21.6~26.4V	24.3~29.7V	43.2~52.8V
Voltage Tolerance Note.3	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Setup,Rise time	800ms, 50ms at full load
Hold time	19ms at full load
Input	Voltage Range	90 ~ 132VAC / 176 ~ 264VAC Selected by switch 248~370VDC
Frequency Range	47~63HZ
Efficiency(Typ.)	74%	79%	80%	81.5%	82%	82%
AC Current(Typ.)	4.8A/115VAC 2.8A/230VAC
Inrush Current (Typ.)	COLD START 45A/230VAC
Leakage Current	<2mA / 240VAC
Protection	Over Load	105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage	5.75 ~ 6.75V	13.8 ~ 16.2V	17.25 ~ 20.25V	27.6 ~ 32.4V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Environment	Working Temperature	-10 ~ +60°c (Refer to "Derating Curve" )
Working Humidity	20~90% RH Non-condensing
Storage temp.& humidity	-20~+85°C, 10~95%RH
Temp. coefficient	±0.03%/°C (0~50°C)
Vibration	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety & EMC (Note 4.)	Safety Standards	UL60950-1 approved
Withstand Voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH
Others	MTBF	271.9K hrs min. MIL-HDBK-217F (25°c )
Dimension	21511550mm (LWH)
Packing	0.95Kg; 12pcs/12Kg/0.92CUFT
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.

OVERALL DIMENSION(Unit:mm)
