About the S-400W S series single output manufacture China

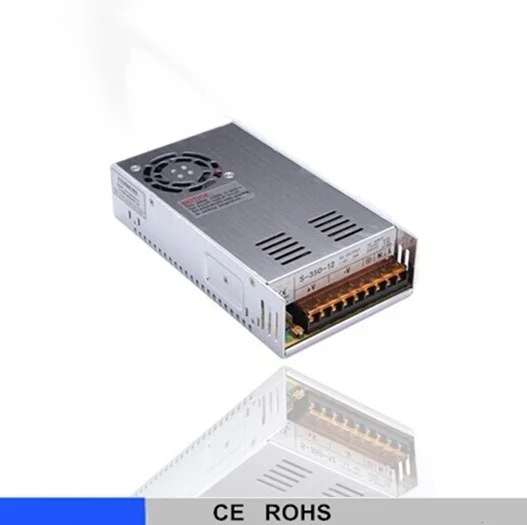

The S-400W S series single output manufacture China is part of the ELEHPD S Series range. 400W Single S series single output manufacture power supply S-400W Features: • Universal AC input / Full range • Protections:Short circuit/Over load/Over voltage • Forced air cooling by built-in DC fan • PWM control and regulated • Built-in cooling Fan ON-OFF control • 100% full load burn-in test • Fixed switching frequency at 25KHz • Low cost • 2 years warranty ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: S series single output manufacture China Liushi power supply S-400W

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right S Series

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

400W Single S series single output manufacture power supply S-400W

Features :

• Universal AC input / Full range

• Protections:Short circuit/Over load/Over voltage
• Forced air cooling by built-in DC fan
• PWM control and regulated
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
• Fixed switching frequency at 25KHz
• Low cost
• 2 years warranty

Model	S-400-5	S-400-7.5	S-400-12	S-400-13.5	S-400-15	S-400-24	S-400-27	S-400-48
Output	DC Voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Rated Current	80A	53A	33A	29.6A	26.6A	16.6A	14A	8.3A
Current Range	0 ~ 80A	0 ~ 53A	0 ~ 33A	0 ~ 29.6A	0 ~ 26.6A	0 ~ 16.6A	0 ~ 14A	0 ~ 8.3A
Rated Power	400W	397W	396W	399.6W	399W	398.4W	378W	398.4W
Ripple & Noise (max.) Note.2	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
Voltage Adj. Range	4.5 ~ 5.6V	6~9V	10~13.2V	12 ~ 15V	13.5~18V	20~26.4V	26 ~ 32V	41 ~ 56V
Voltage Tolerance Note.3	±2.0%	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±1.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Setup,Rise, Hold time	200ms, 50ms, 20ms at full load
Input	Voltage Range	90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC
Frequency Range	47~63HZ
Efficiency(Typ.)	73%	76%	74%	79%	78%	81%	82%	83%
AC Current	6.5A/115VAC 4A/230VAC
Inrush Current (max.)	50A/115VAC 50A/230VAC
Leakage Current	<3.5mA / 240VAC
Protection	Over Load	105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage	5.75 ~ 6.75V	9.4 ~ 10.9V	13.8V~16.2V	15.5 ~ 18.2V	18V~21V	27.6V~32.4V	33.7 ~ 39.2V	57.6 ~ 67.2V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Function	Fan on/ off Control	RTH3 ≥55°c FAN ON, ≤45°c FAN OFF, ≥80°c output shutdown (5 ~ 7.5V)
RTH3 ≥65°c FAN ON, ≤55°c FAN OFF, ≥80°c output shutdown (12 ~ 15V)
RTH3 ≥70°c FAN ON, ≤60°c FAN OFF, ≥85°c output shutdown (24 ~ 48V)
Environment	Working Temperature	-10 ~ +50°c (Refer to output load derating curve)
Working Humidity	20~90% RH Non-condensing
Storage temp.& humidity	-20~+85°C, 10~95%RH
Temp. coefficient	±0.03%/°C (0~50°C)
Vibration	10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC	Withstand Voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Others	MTBF	234.3K hrs min. MIL-HDBK-217F ( 25°c )
Dimension	21511550mm (LWH)
Packing	1.07Kg; 12pcs/13.5Kg/0.92CUFT
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
