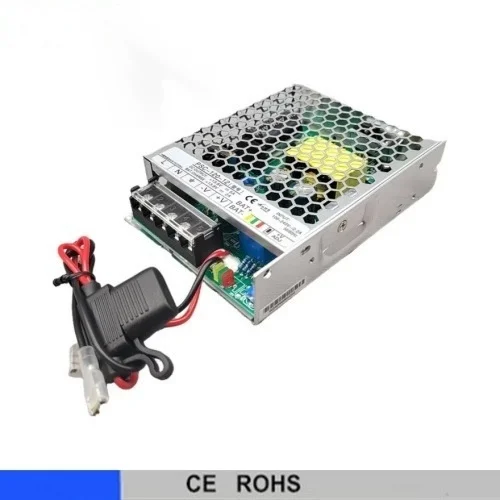

PSC-100 UPS Switching Power Supply AC to DC

Q: How much headroom should I leave on the power rating?

For continuous industrial duty plan on 20-30 % headroom above the measured load. For loads with high inrush, such as motors or capacitive input, allow more and check the surge rating rather than only the average current.

Q: Do these units accept 110 V and 230 V mains?

Input ranges are model-specific and shown in the specification table. Where a wide-range input is available it is stated; otherwise send your mains voltage and we will match the model.

Q: What protection features are built in?

Typical protection covers short circuit, over-current, over-voltage and thermal shutdown. The exact set is listed per model in the specification table above.

Q: Can you supply matching DIN-rail or enclosed versions?

Open-frame, enclosed and DIN-rail variants exist across this family. Send the model you are working from and we will confirm the equivalent mounting option.

About the PSC-100 UPS Switching Power Supply AC to DC

The PSC-100 UPS Switching Power Supply AC to DC is part of the ELEHPD UPS Charger Series range. PSC-100 UPS Switching Power Supply AC to DC from the ELEHPD UPS Charger Series range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: PSC-100 120W 100W UPS Switching Power Supply 220V AC to DC 13.8V 24V 27.6V LED Charge Function SMPS

Typical applications

Industrial control panels and PLC power rails
LED drivers, signage and display power
Battery charging and DC backup systems
Motor drives, welding sets and rectifier assemblies
Instrumentation and test equipment

How to specify the right UPS Charger Series

Size the output current with at least 20-30 % headroom over the load
Check the input range covers the local supply, including brown-outs
Confirm the enclosure and cooling method for the panel temperature
Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

PSC-100 120W 100W UPS Switching Power Supply 220V AC to DC 13.8V 24V 27.6V LED Charge Function SMPS

Model		PSC-120-12	PSC-120-24
output	DC voltage		CH1:13.8V	CH1:13.8V	CH1:27.6V	CH2:7.6V
Voltage tolerance		±1%	-----	±1%	-----
Rated current		5A	2A	2.5A	1A
Current range		0~5	--	0~2.5A	-----
Ripple&noise		100mvp-p	-----	100mvp-p	-----
DCvoltage ADJ.range		CH1:11.3~14.9V	CH1:21.3~29.8V
input	Voltage range		90~264VAC,127~370VDC
frequency		47~63HZ
AC current		1.6A/115VAC,0.8A/230VAC
efficiency		81%	83%
Inrush current		Cold start current 25A/115VAC,45A/230VAC
Leakage current		< 1mA/240VAC
protection	Over load		Rated output power110%~150% start over load protection
	protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
Battery protection At low voltage		9.5~11V	20~22V
	protection mode:cutoff output
Function	UPS introduction		long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs
environment	Working temp,humidity		-10°C~+60°C,20%~90%RH
Storagetemp,humidity		-20°C~+85°C,10%~95%RH non-condensing
Withstand vibration		10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage		I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance		I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard		Compliance to UL60950-1
EMC standard		Compliance to EN55022,CLASSB
others	Dimension		1299838mm (LWH)
Weight/packing		0.45kg/45pcs/24kg/0.034m⊃3;/1.2CU
