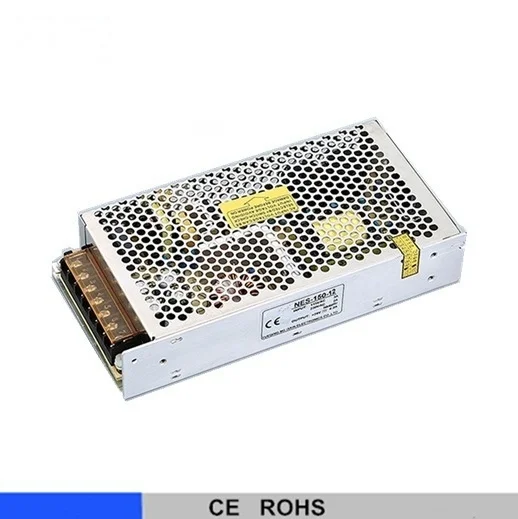

NES-150W HIGH EFFICIENCY SWITCHING POWER SUPPLY 150W

Features :

•AC input range selectable by switch

• Protections: Short circuit / Overload / Over voltage

•Cooling by free air convection

•LED indicator for power on

•100% full load burn-in test

•High efficiency, long life and high reliability

•2 years warranty

MODEL	NES-150-5	NES-150-12	NES-150-15	NES-150-24
OUTPUT	DC voltage	5V	12V	15V	24V
Voltage tolerance	±2%	±1%	±1%	±1%
Rated current	30A	12.5A	10A	6A
Current range	0~30A	0~12.5A	0~10A	0~6A
Rated power	140W	150W	150.5W	150.8W
Ripple&noise	80mvp-p	100mvp-p	100mvp-p	120mvp-p
DC voltage ADJ.range	-9%~+10%	±10%	±10%	±10%
INPUT	Voltage range	90~137VAC/176~264VAC Selected By Switch,125~373VDC
frequency	47~63Hz
AC current	2.2A/115VAC,1.1A/230VAC
efficiency	79%	82%	82%	84%
Inrush current	Cold start current 20A/115VAC,40A/230VAC
Leakage current	< 2mA/240VAC
PROTECTION	Over load	Rated output power110%~150% start over load protection
protection type:hiccup mode,auto-recovery after fault condition is removed
over voltage	6.8~8.2V	15.6~17.8V	18.6~20.8V	30.6~33.2V
protection type:hiccup mode,auto-recovery after fault condition is removed
ENVIROMENT	Working temp,humidity	-20ºC~+60ºC,20%~90%RH
Storagetemp,humidity	-40ºC~+85ºC,10%~95%RH non-condensing
Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
SAFETY STANDARD&EMC	Withstand voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Safety standard	DESIGN REFER TO UL1012
EMC standard	EN55022,CLASSA
OTHERS	Dimension	1999838mm (LWH)
Weight/packing	0.48kg/45pcs/22.5kg/0.041m³/1.45CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
