SPECIFICATIONS
OUTPUT
Model	EDR-75-12	EDR-75-24	EDR-75-48
DC Voltage	12V	24V	48V
Rated Current	6.3A	3.2A	1.6A
Current Range	0-6.3A	0-3.2A	0-1.6A
Rated Power	75.6W	76.8W	76.8W
Ripple & Noise	100mVp-p	120mVp-p	150mVp-p
Voltage Adj. Range	12-14V	24-28V	48-53V
Voltage Tolerance	±2%	±1%	±1%
Setup, Rise Time	1000ms,60ms/230VAC 1800ms,60ms/115VAC at full load
Hold Up Time	60ms/230VAC 12ms/115VAC at full load
Voltage Range	85~264VAC 47~63 Hz; 120~370VDC
AC Current	1.6A/115V 0.96A/230V
Efficiency	83%	85%	86%
Inrush Current	Cold start 20A/115VAC 40A/230VAC
Leakage Current	<1mA/240VAC
Over Load	105%~150%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage	120%~140%
Protection type: Shut down o/p voltage, re-power on to recover
Over Temp.	TSW1≥85ºC±5ºC
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
Working Temp., Humidity	-10ºC~+60ºC; 20%~90%RH
Storage Temp., Humidity	-20ºC~+85ºC; 10%~95%RH
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
EMC Standard	EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2
Dimension	32.511.5125.2mm(LWH)
Weight	0.45Kg
Packing	30pcs/16Kg/1.1CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

Frequently asked questions about the EDR-75 Adjustable Single Output EDR SMPS AC to

What is the difference between a contactor and a relay?

A contactor is built for switching power circuits repeatedly at high current, often with motor duty ratings (AC-3) and arc-suppressing chambers. A relay switches control signals at low current. In practice: contactor for the motor, relay in the control circuit that drives the contactor coil.

How do I calculate the correct contactor size for a motor?

Use the motor's full-load current, apply the AC-3 rating for the operating voltage, and allow for the number of starts per hour. As a rule of thumb, the contactor's AC-3 rating should be at least equal to the motor FLC, then step up one frame if the duty is heavy.

Do you supply the coil voltage I need?

Coil voltages are specified per order. Send the model number, coil voltage and frequency you require and we will confirm availability and lead time.

Are auxiliary contacts included?

Base models come with the standard auxiliary contact configuration for that frame. Add-on auxiliary blocks and mechanical interlocks can be quoted with the contactor.

Related EDR-Series models

EDR 120W Single Output Switching Power Supply DIN Rail SMPS

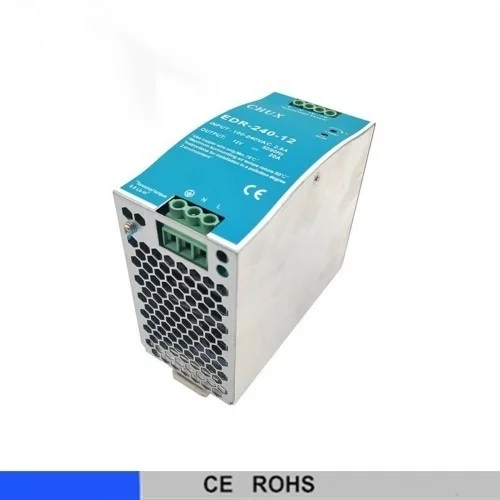

Ultra Thin EDR Series 240W DIN Rail Switching Power Supply
