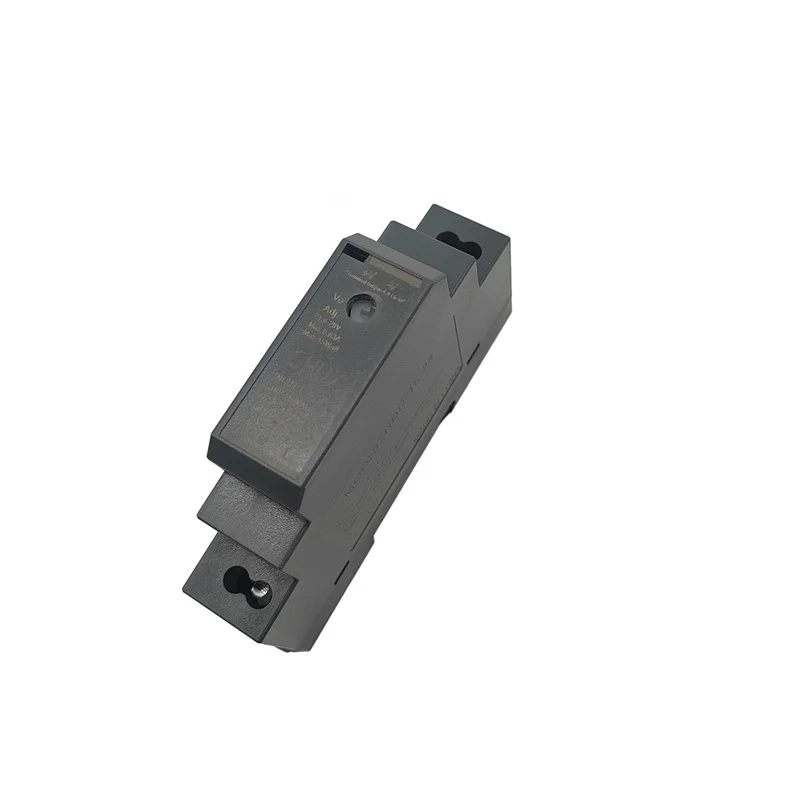

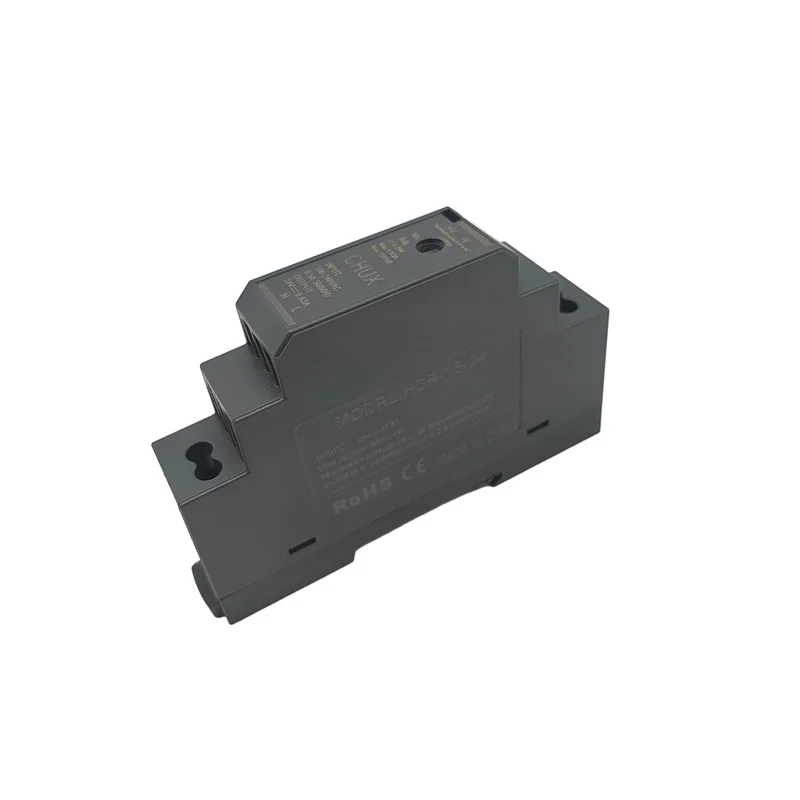

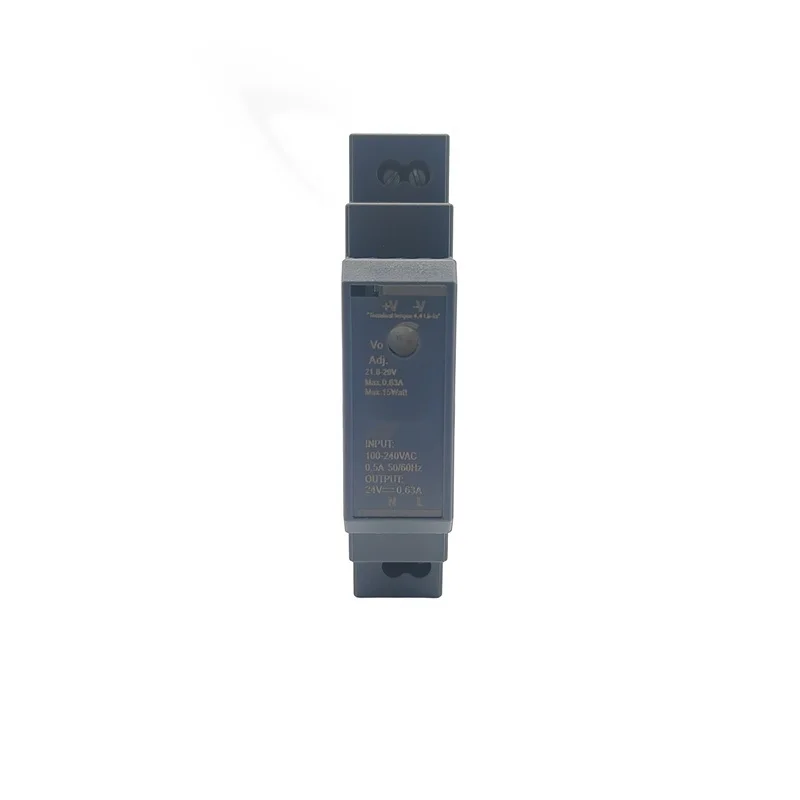

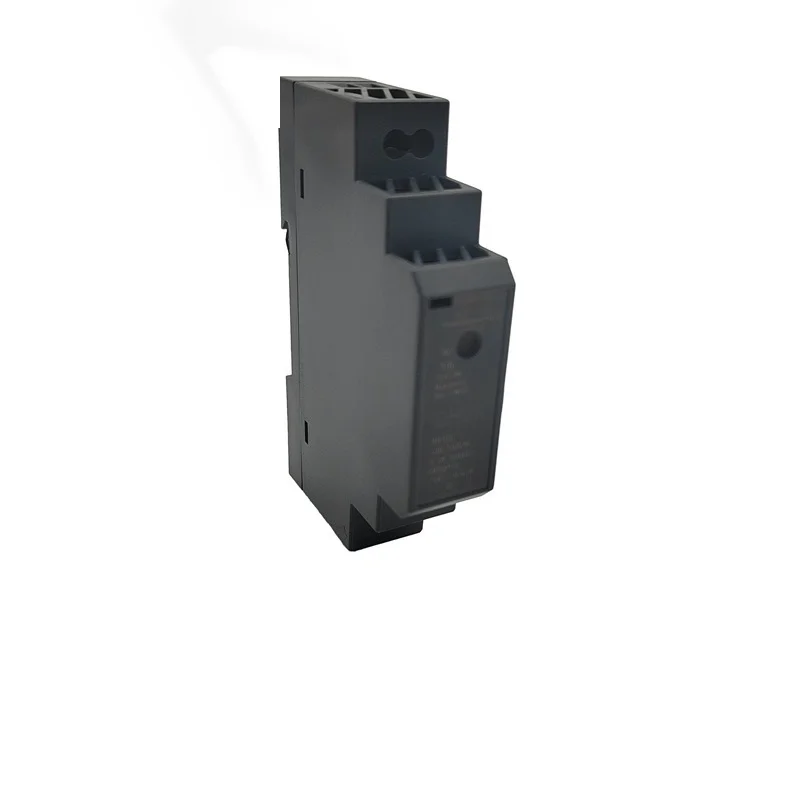

CHUX HDR-15W

About the CHUX HDR-15W

The CHUX HDR-15W is part of the ELEHPD HDR-Series range. CHUX HDR-15 series DC 5V 12V 15V 24V 48V Ultra Slim Step Shape DIN Rail Power Supply ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right HDR-Series

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

CHUX HDR-15 series DC 5V 12V 15V 24V 48V Ultra Slim Step Shape DIN Rail Power Supply

SPECIFICATIONS
OUTPUT
Model	HDR-15-5	HDR15-12	HDR-15-15	HDR-15-24
DC Voltage	5V	12V	15V	24V
Rated Current	2.4A	1.25A	1A	0.63A
Current Range	0-2.4A	0-1.25A	0-1A	0-0.63A
Rated Power	12W	15W	15W	15.2W
Ripple & Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p
Voltage Adj. Range	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
Voltage Tolerance	±2%	±1%	±1%	±1%
Line regulation	±1%	±1%	±1%	±1%
Load regulation	±1%	±1%	±1%	±1%
Setup, Rise, Hold Up Time	1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load 70ms/230VAC 16ms/115VAC at full load
Voltage Range	85 ~ 264VAC 120 ~ 370VDC
AC Current	0.88A/115VAC 0.48A/230VAC
Efficiency	77%	84%	83.5%	85%
Inrush Current	COLD START 35A/115VAC 65A/230VAC
Over Load	105%~160% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage	5.75-6.75V	13.8-16.2V	17.25-20.25V	27.6-32.4V
Protection type: Shut off o/p voltage, clamping by zener diode
Working Temp., Humidity	-20ºC~+60ºC; 20%~90% RH non-condensing
Storage Temp., Humidity	-40ºC~+85ºC; 10%~95%RH
Temp. Coefficient	±0.03%/ºC(0~50ºC)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes, Mounting: Compliance to IE60068-2-6
Withstand Voltage	I/P-O/P: 3KVAC
Isolation Resistance	I/P-O/P: 100M Ohms / 500VDC/ 25ºC/ 70%RH
Safety Standard	Design refer to UL60950-1,TUV EN60950-1,EN50178
EMC Standard	Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2,EN61204-3, heavy industry level, criteria A
Dimension	931856mm
Weight	0.1Kg
Packing	140pcs/15KG/0.92CUFT

Frequently asked questions about the CHUX HDR-15W

What is the difference between a contactor and a relay?

A contactor is built for switching power circuits repeatedly at high current, often with motor duty ratings (AC-3) and arc-suppressing chambers. A relay switches control signals at low current. In practice: contactor for the motor, relay in the control circuit that drives the contactor coil.

How do I calculate the correct contactor size for a motor?

Use the motor's full-load current, apply the AC-3 rating for the operating voltage, and allow for the number of starts per hour. As a rule of thumb, the contactor's AC-3 rating should be at least equal to the motor FLC, then step up one frame if the duty is heavy.

Do you supply the coil voltage I need?

Coil voltages are specified per order. Send the model number, coil voltage and frequency you require and we will confirm availability and lead time.

Are auxiliary contacts included?

Base models come with the standard auxiliary contact configuration for that frame. Add-on auxiliary blocks and mechanical interlocks can be quoted with the contactor.
