CBB80 Lamp Capacitor

About the CBB80 Lamp Capacitor

The CBB80 Lamp Capacitor is part of the ELEHPD Capacitor range. CBB80 type Lamp Capacitor 1.Suitable for lamps and lanterns and so on 2.Small volume,light,low lose,safety and trusy 3.Improve the line power and setup the pressure to start and so on.Inner with the device of Insurance flame-proof and discharging resistance. 4、It has the character of endure the high temperature.It can using in 40 degree to 85 degree. Parameter ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Industrial control panels and PLC power rails
LED drivers, signage and display power
Battery charging and DC backup systems
Motor drives, welding sets and rectifier assemblies
Instrumentation and test equipment

How to specify the right Capacitor

Size the output current with at least 20-30 % headroom over the load
Check the input range covers the local supply, including brown-outs
Confirm the enclosure and cooling method for the panel temperature
Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

CBB80 type Lamp Capacitor

1.Suitable for lamps and lanterns and so on
2.Small volume,light,low lose,safety and trusy
3.Improve the line power and setup the pressure to start and so on.Inner with the device of Insurance flame-proof and discharging resistance.
4、It has the character of endure the high temperature.It can using in 40 degree to 85 degree.

Parameter

ITEMS	CHARACTERISTICS	TEST CONDITION
OPERATING TEMP	-40℃ ~ +85℃
CAPACITANCE TOLERANCE	± 5% (J)
DISSIP ATION FACIOR	≤ 0.2%	F=100HZ 25 ℃
WITHSTAND VOLTAGE	极间/T-T:1.75WV.AC 极壳/T-C: ≥2400V.AC	10 Sec
DISCHARGING RESISTANCE.	0.5M ～1.2M 0.5W ～1W

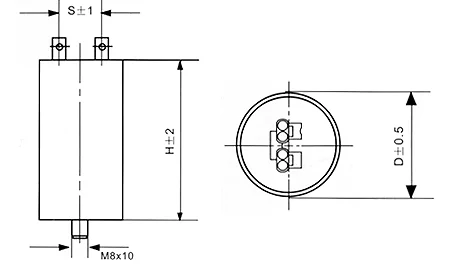

CAPACTITY,VOLTAGE AND OUTSIDE DIMENSION

容量 Cap(vF)	250V.AC	400(450)V.AC
D	H	S	S	H	S
4.0	30	60	12
6.0	30	60	12	30	65	12
8.0	30(35)	78(60)	12	35	65	12
12	30(35)	78(70)	12	40	75
18	40	70	12	45	90
25	40	80	12	50	90
32	45(50)	90(80)	12	50	100
50	50	95	12	55	105
