	BSMJ Series Self-healing Type Shunt Capacitor

1)、General Description

Self-healing type low voltage shunt capacitor,applied the advanced Zn-Al complexed metallized film,adopted foreign dvanced production techology techniques and international IEC831- 1 (1998) Standards.The products is mainly suitable for low voltage electric network to improve power factor,reduce reactive loss,and improve the voltage quality.

2).Service condition

Use indoor
Temperature range;-25℃~50℃
humieity:less then 85%RH
Altitude:lower than 2000m
Mounting Ambient:No harmless gas and steamed gas, no inductive and explosive dust,no violent vibration;

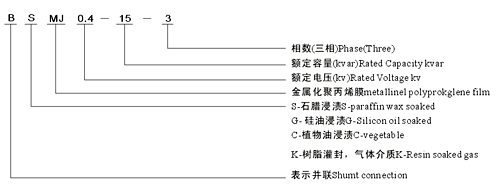

3).Model Fig.

4).Characteristics

1.Small volume,light weight:lt is only 1/4and 1/5of the weight and volume of the outdated products respectively.
2.Low loss:With the actual loss less than 0.1,little radiation,low temperature rise,and good energy conservation effect.
3.Excellent self-healing performance:When a part of the isolation is fed through due to the overvoltage,it is capable of self-healing soas to continue the operation,therefore the reliability is improved greatly.
4.Safety:Equipped with self-discharging resistant and safty devices inside,the inner discharging resistant can make the attached electric discharged;when there is wrong with the capacitor,the fuse equipment can cut out the electric power,so that no more trouble with the capacitor,safty and reliable.
5.without oil leakage:this product adoped advanced half-solid soak materials driips melting point higher than 70℃,avoid leakage during operation and pritect the envirament,the capacitor will not no use since the leakage.

5).Technical characteristics

Rated Voltage:400VAC 450VAC 525VAC 690VAC
Rated Output:1-60kvar
Capacitance Tolerance:0~+15%
Tangent of the loss angle:>0.10%
With stand voltage of case between phase:2.15un2s
With stand voltage of case between phase:3kV(AC)10s
500VDC cmong the phases 1 main more than 1000MΩ
Max allowable voltage:Rated voltage 110%
Max allowable current:Rated voltage 130%
Self-discharging characteristics:Switch off the power supply for 3 min,the residual voltage less than 50V

6).General & Dimension

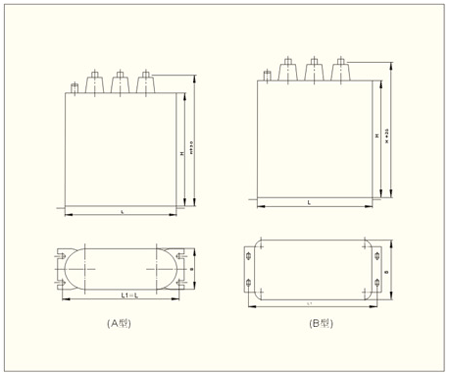

7).Dimension

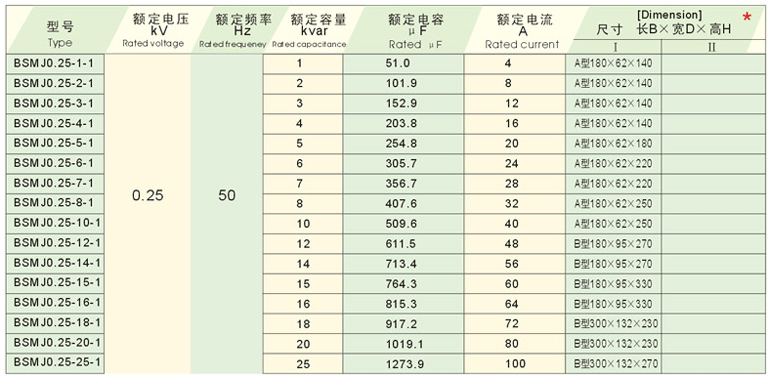

	0.25kV SERIES

	Other capacitance and dimension series can be specified in compliance with customer’s request。

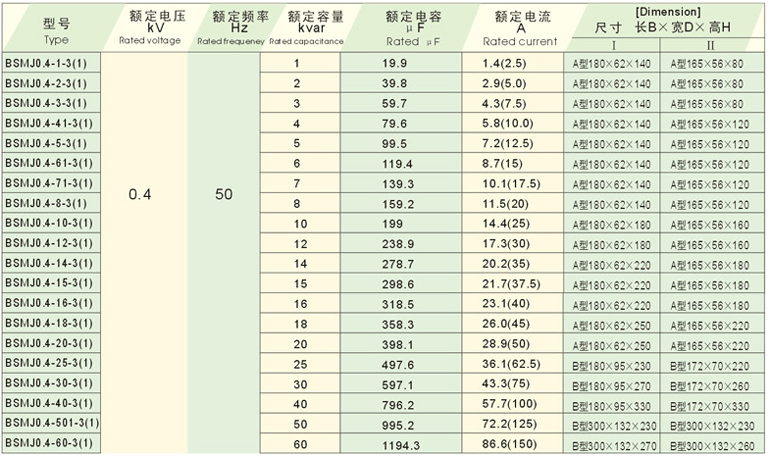

	0.4kV SERIES

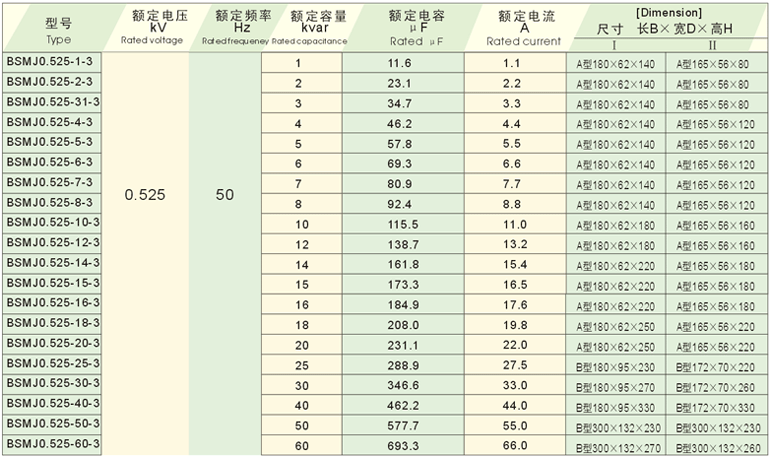

	0.525kV SERIES

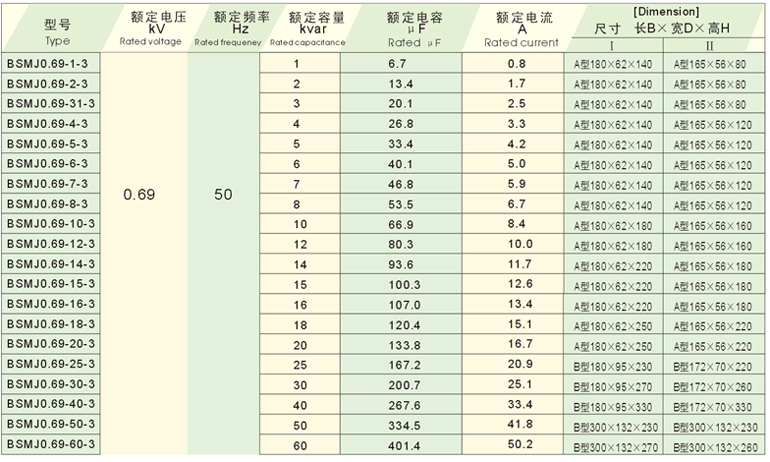

	0.69kV SERIES

	Nate：Dimension “Ⅰ”,our presented dimension Dimension “Ⅱ”,our impresented dimension
