CBB60 AC Motor Running Capacitor

About the CBB60 AC Motor Running Capacitor

The CBB60 AC Motor Running Capacitor is part of the ELEHPD Capacitor range. CBB60 AC Motor Running Capacitor from the ELEHPD Capacitor range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Industrial control panels and PLC power rails
LED drivers, signage and display power
Battery charging and DC backup systems
Motor drives, welding sets and rectifier assemblies
Instrumentation and test equipment

How to specify the right Capacitor

Size the output current with at least 20-30 % headroom over the load
Check the input range covers the local supply, including brown-outs
Confirm the enclosure and cooling method for the panel temperature
Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

CBB60 type AC Motor Running Capacitor

I、Features:
	The capacitor takes heavy-edge metallized. AI/Zn PP film or web-like fuse metallized PP film as dielectrie,Its components are assembled in flame-retardant ABS or PBT eylindrical crust, impregnated with flame-retatdant epoxy resin.It has high reliability and stability.
II、Applications
Broadly applied to running of single-phase AC motors at 50Hz (60Hz)frequency for washedrs and high efficiency compressors of refrigerators etc.
III、Technical Specifications
Standard:GB3667-1997,same asIEC 60252:1993 Technical features: Climate type:40/70/21,40/85/21 Capacitance tolerance:±5% Insulation resistance:≥3000s Dielectric dissipation factor:tgδ≤0.002(50Hz~100Hz) Life expectancy:3000h(Class C)or10000h(Class B)
IV、Application requirements:
Altitude:≤3000m Residual voltage in application:Less than 10%of rated voltage Allowed maximum voltage:Less than 1.1 times of rated voltage Permissible maximum current:Less than1.3 times of rated current

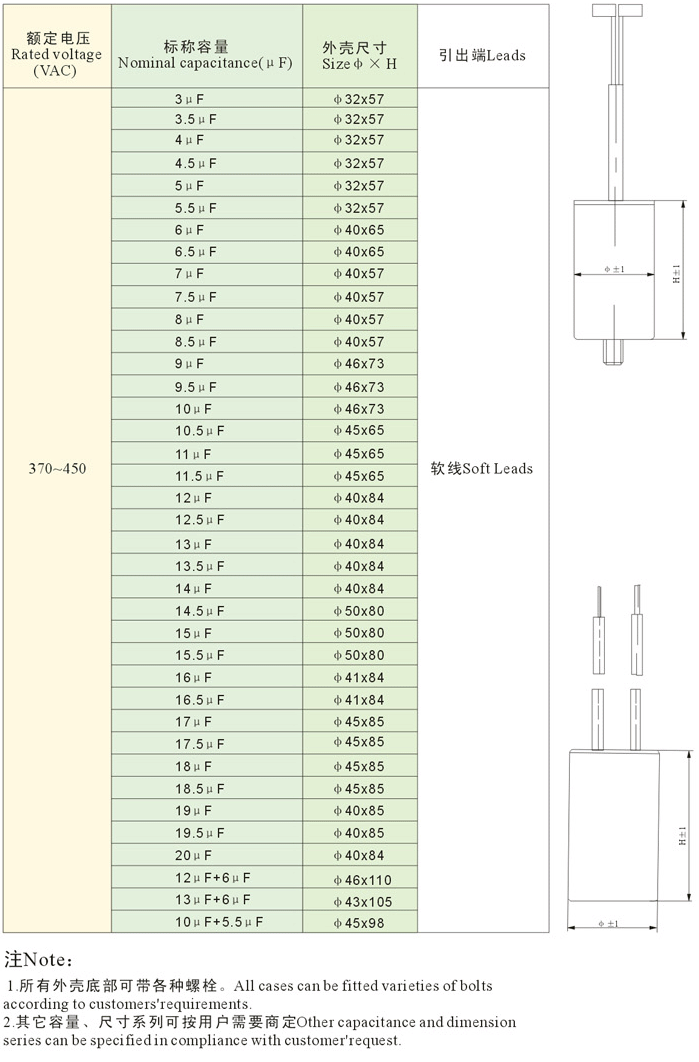

V、Dimensions（mm）
