6U,8U,9U,12U Energy-saving Lamp

About the 6U,8U,9U,12U Energy-saving Lamp

The 6U,8U,9U,12U Energy-saving Lamp is part of the ELEHPD Energy-saving Lamp range. 6U,8U,9U,12U Energy-saving Lamp from the ELEHPD Energy-saving Lamp range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Commercial interiors: offices, retail, showrooms and hospitality
Industrial high-bay lighting for warehouses and workshops
Outdoor area, street and roadway lighting
Warehouse, logistics and cold-store facilities
Project lighting specified through M&E contractors

How to specify the right Energy-saving Lamp

Work from the required lux level at the task plane, then the mounting height
Match beam angle to the space: narrow for high ceilings, wide for low uniform coverage
Check the IP and IK rating for the installation environment
Confirm colour temperature and CRI with the interior designer or specifier

Specifications

6U/100W-150W

5U/95W-125W

8U/125W-210W

LX/85W-110W

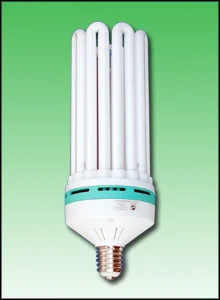

6U and 8U Saving-Energy Lamp

Type	Voltage (V)	Power (W)	Lumin Flux (Lm)	Rendering Index (Ra)	Color Temperature (K)	Cap	Width (W)	Length (L)	Size (CM)	Package (Pcs)	Remark
U601-6U	120V/220V	95	4950	82	2700K-6400K	E40	105mm	325mm	640×500×415	20
U602-6U	120V/220V	105	5500	82	2700K-6400K	E40	105mm	335mm	640×500×415	20
U603-6U	120V/220V	110	5600	82	2700K-6400K	E40	105mm	340mm	640×500×415	20
U604-6U	120V/220V	125	6050	82	2700K-6400K	E40	105mm	345mm	640×500×415	20
U605-6U	120/220V	150	6400	82	2700K-6400K	E40	105mm	350mm	760×460×415	15
U801-8U	220V	135	7050	82	2700K-6400K	E40	126mm	325mm	760×460×415	15
U802-8U	220V	155	7050	82	2700K-6400K	E40	126mm	335mm	760×460×415	15
U803-8U	220V	165	7110	82	2700K-6400K	E40	126mm	340mm	760×460×415	15
U804-8U	220V	185	7800	82	2700K-6400K	E40	126mm	345mm	760×460×415	15
U805-8U	220V	200	8840	82	2700K-6400K	E40	126mm	350mm	760×460×415	15

9U Saving-Eenery Lamp

TYPE	Power（W）	Voltage （V）	Current（A）	Power Factor	Luminous Flux (Lm)	Rendering Index (Ra)	Life (Hour)	Cap	Dimension （mm）	Packing(PCS)	Replacing Power
L	Outside Dia.(mm)	Tube Dia.(mm)	白炽灯	汞灯	金卤灯	钠灯
U901-9U	245	220	1.12	0.99	17150	83	10000	E40	360	137	17	9	1000	600	450	450
U902-9U	215	220	0.99	0.99	15050	83	10000	E40	340	137	17	9	1000	600	450	450

12U Saving-Energy Lamp

TYPE	Power（W）	Voltage （V）	Current（A）	Power Factor	Luminous Flux (Lm)	Rendering Index (Ra)	Life (Hour)	Cap	Dimension （mm）	Packing(PCS)	Replacing Power
L	Outside Dia.(mm)	Tube Dia.(mm)	白炽灯	汞灯	金卤灯	钠灯
U1201-12U	285	220	1.30	0.99	21500	83	10000	E40	360	137	17	9	1500	900	550	550
U1202-12U	265	220	1.20	0.99	19850	83	10000	E40	340	137	17	9	1350	750	500	500

Frequently asked questions about the 6U,8U,9U,12U Energy-saving Lamp

What colour temperature should I specify?

4000 K neutral white is the safe general choice for industrial and commercial interiors. 3000 K suits hospitality and retail where a warmer look is wanted. 5000-6500 K is common for outdoor and roadway lighting.

What IP rating do I need for outdoor use?

IP65 is the practical minimum for exposed outdoor fixtures. For wash-down or coastal locations, specify IP66 with a corrosion-resistant housing and confirm the IK impact rating.

Can the fixtures be dimmed or sensor-controlled?

Dimming and sensor variants depend on the driver fitted to the model. Tell us the control protocol you use (0-10 V, DALI, triac) and we will confirm compatible models.

Do you supply photometric data for lighting design?

IES/LDT photometric files can be supplied for project models so your designer can run the lighting calculation in DIALux or Relux.
