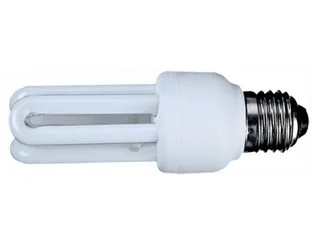

About the 3U Energy-saving Lamp
The 3U Energy-saving Lamp is part of the ELEHPD Energy-saving Lamp range. Type Rated Voltage(V) Frequency(Hz) Rated Power(W) Luminous Flux (Lm) Color Temperature (K) Life-soan(Hour) Base Tube Diameter(mm) L(mm) L1(mm) A(mm) C(mm) U301 100/130 220/240 50/60 7W 9W 11W 13W 15W 350 450 550 650 750 2700 3200 4500 5000 6400 7000 10000 E27 B22 E26 ø9 100 110 120 130 140 58 48 34 ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Commercial interiors: offices, retail, showrooms and hospitality
- Industrial high-bay lighting for warehouses and workshops
- Outdoor area, street and roadway lighting
- Warehouse, logistics and cold-store facilities
- Project lighting specified through M&E contractors
How to specify the right Energy-saving Lamp
- Work from the required lux level at the task plane, then the mounting height
- Match beam angle to the space: narrow for high ceilings, wide for low uniform coverage
- Check the IP and IK rating for the installation environment
- Confirm colour temperature and CRI with the interior designer or specifier

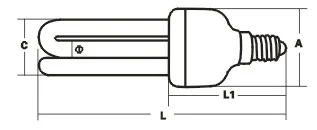

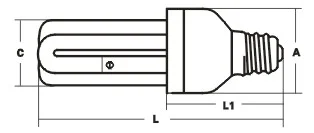

Specifications
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature (K) |
Life-soan(Hour) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U301 |
100/130
220/240 |
50/60 |
7W
9W
11W
13W
15W |
350
450
550
650
750 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E26 |
ø9 |
100
110
120
130
140 |
58 |
48 |
34 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature(K) |
Life-soan(Hour) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U302 |
100/130
220/240 |
50/60 |
7W
9W
11W
13W
15W |
350
450
550
650
750 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E26 |
ø9 |
111
121
131
141
151 |
65 |
42 |
34 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature(K) |
Life-soan(Hour) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U303 |
100/130
220/240 |
50/60 |
7W
9W
11W
13W
15W |
350
450
550
650
750 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E14
E26 |
ø9 |
107
117
127
137
147 |
69 |
42 |
34 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature (K) |
Life-soan(Hour) |
Base |
Tube Diameter (mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U304 |
100/130
220/240 |
50/60 |
7W
9W
11W
13W
15W |
350
450
550
650
750 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E14
E26 |
ø9 |
105
115
1250
135
145 |
63 |
44 |
34 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature(K) |
Life-soan(Hour) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U305 |
100/130
220/240 |
50/60 |
11W
13W
15W
18W
20W
25W |
550
650
750
900
1080
1400 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E26 |
ø12 |
127
137
147
157
167
182 |
75 |
56 |
42 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature (K) |
Life-soan(Hour) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U306 |
100/130
220/240 |
50/60 |
11W
13W
15W
18W
20W
25W |
550
650
750
900
1080
1400 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E26 |
ø12 |
122
132
142
152
162
177 |
70 |
53 |
42 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature(K) |
Life-soan(Hour) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U307 |
100/130
220/240 |
50/60 |
11W
13W
15W
18W
20W
25W |
550
650
750
900
1080
1400 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E26 |
ø12 |
122
132
142
152
162
177 |
70 |
48 |
42 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature(K) |
Life-soan(Hour) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U308 |
100/130
220/240 |
50/60 |
11W
13W
15W
18W
20W
25W |
550
650
750
900
1080
1400 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E26 |
ø12 |
127
137
147
157
167
182 |
75 |
52 |
42 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature (K) |
Life-soan(Hour) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U309 |
100/130
220/240 |
50/60 |
11W
13W
15W
18W
20W
25W |
550
650
750
900
1080
1400 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E26 |
ø12 |
126
136
146
156
166
181 |
74 |
54 |
40 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature(K) |
Life-soan(Hour) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U310 |
100/130
220/240 |
50/60 |
11W
13W
15W
18W
20W
25W |
550
650
750
900
1080
1400 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E26 |
ø12 |
148
173
178
188
193 |
81 |
52 |
40 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux ( Lm) |
Color Temperature (K) |
Life-soan(Hour ) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U311 |
100/130
220/240 |
50/60 |
20W |
Ultraviolet radiation |
6400
|
10000 |
E27
B22
E26 |
ø12 |
167 |
75 |
56 |
42 |
![]()
![]()
| Type |
Rated Voltage(V) |
Frequency(Hz) |
Rated Power(W) |
Luminous Flux (Lm) |
Color Temperature (K) |
Life-soan(Hour) |
Base |
Tube Diameter(mm) |
L(mm) |
L1(mm) |
A(mm) |
C(mm) |
| U312 |
100/130
220/240 |
50/60 |
15W
20W
23W
25W
30W |
750
1080
1242
1350
1500 |
2700
3200
4500
5000
6400
7000 |
10000 |
E27
B22
E26 |
ø12 |
137
162
167
157
177
182 |
70 |
55 |
40 |
Frequently asked questions about the 3U Energy-saving Lamp
What colour temperature should I specify?
4000 K neutral white is the safe general choice for industrial and commercial interiors. 3000 K suits hospitality and retail where a warmer look is wanted. 5000-6500 K is common for outdoor and roadway lighting.
What IP rating do I need for outdoor use?
IP65 is the practical minimum for exposed outdoor fixtures. For wash-down or coastal locations, specify IP66 with a corrosion-resistant housing and confirm the IK impact rating.
Can the fixtures be dimmed or sensor-controlled?
Dimming and sensor variants depend on the driver fitted to the model. Tell us the control protocol you use (0-10 V, DALI, triac) and we will confirm compatible models.
Do you supply photometric data for lighting design?
IES/LDT photometric files can be supplied for project models so your designer can run the lighting calculation in DIALux or Relux.
