About the MDR SWITCHING POWER SUPPLY MDR-40W

The MDR SWITCHING POWER SUPPLY MDR-40W is part of the ELEHPD MDR-Series range. MDR POWER SUPPLY MDR-40W Feature Universal AC input/ full range Protections: Short circuit/ Over load/ Over voltage Cooling by free air convection Can be installed on DIN rail TS-35/ 7. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right MDR-Series

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

MDR POWER SUPPLY MDR-40W
Feature

Universal AC input/ full range

Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15

isolation classⅡ
LED indicator for power on
100% full load burn-in test
2 years warranty

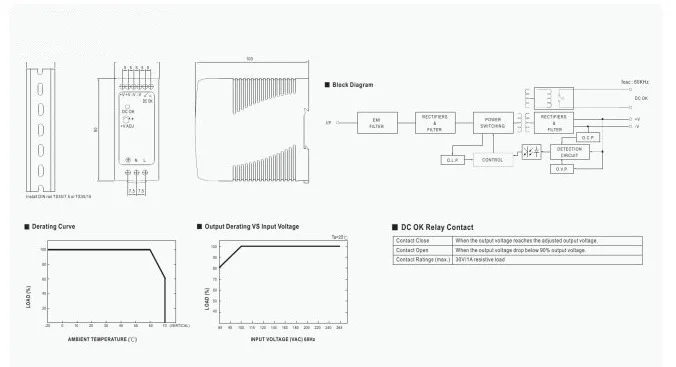

40w mdr power supply Specification

40W dinrail switching power supply
Universal AC input/full range
Protections: Short circuit/over load/over voltage
Cooling by free air convection
Can be installed on DIN-Rail: TS-35/7.5 or TS-35/15
Built in DC OK active signal
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test
1 year warranty

Model		MDR-40-5	MDR-40-12	MDR-40-15	MDR-40-24
Output	DC output Voltage	5V	12V	15V	24V
Voltage tolerance	±1.0%	±1.0%	±1.34%	±1.0%
Rated Current	3A	1.67A	0.67A	0.42A
Related Power	30w	40w	40.8w	39.8w
Wave&Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p
Voltage adjust range	5-6V	12-15V	24-30V	48-56V
Set up,rise time	500ms 30ms/230VAC 1000ms,30ms/115VAC at full load
hold up time	50ms/230VAC 20ms/115VAC at full load
Input	Voltage Range	85 ~ 264VAC 47-63HZ 120-370VDC
Input Current	0.55A/115VAC 0.35A/230VAC
Efficiency	77%	81%	81%%	84%
AC inrush current	Cold start current 35A/115V 70A/230VAC
Leakage current	<1mA/240VAC
Protection	Overload	Above 105%-160% rated output power
hiccup mode, recovery automatically after fault condistion is removed
Over voltage	6.25-7.25V	15.6-18V	31.6-36V	57.6-64.8V
Shut down o/p voltage, re-power on to recover
Function	DC OK active single	Relay contact rating(max) :30V/1A resistive
Environment	Working temp humidity	-20~+70°C 20%~90%RH
Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
Safety	safety standards	UL508,TUV EN60950-1 approved
Withstand voltage	I/P-O/P:3KVAC I/P-FG:2KVA O/P-FG:0.5KVA
Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25 %RH
EMC emission	Compliance to EN55011,EN55022,EN61204-3 class B,EN61000-3-2,-3
Size	size	4090100mm WHD
Package	0.3kg,42pcs/14kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.
