LW6D Rotary Switch

About the LW6D Rotary Switch

The LW6D Rotary Switch is part of the ELEHPD Rotary Switch range. Mechanical life Mechanical life without load:0.3×10 6 times,operation frequency is 120 times/h. Mechanical life with load:0.1×10 6 times under AC-15,0.1×10 6 times under DC-13,operation frequency is 300 times/h. Dimensions Re:n for number of layers Installation optional ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right Rotary Switch

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

Application
　　LW6D rotary switch applied to change over of circuits and control motors as well.

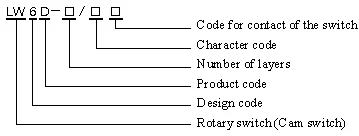

Designation

Classification
1 according to contact base

type	Amount of contact base	Amount of double-contacts	Method of arrangement
LW6D-1	1	3	single line
LW6D-2	2	6
LW6D-3	3	9
LW6D-4	4	12
LW6D-5	5	15
LW6D-6	6	18
LW6D-8	8	24
LW6D-10	10	30

2 Diagram for the operation and position of handle

Character
code

Position of handle

0°

30°

0°

30°

0°

30°

60°

30°

0°

30°

60°

30°

0°

30°

60°

90°

60°

30°

0°

30°

60°

90°

60°

30°

0°

30°

60°

90°

120°

90°

60°

30°

0°

30°

60°

90°

120°

90°

60°

30°

0°

30°

60°

90°

120°

150°

120°

90°

60°

30°

0°

30°

60°

90°

120°

150°

210°

240°

270°

300°

330°

0°

30°

60°

90°

120°

150°

180°

Technical parameters

Rated thermal current Ith

A

5

Rated working voltage Ue

V

240

250

380

Rated working current Ie

AC-15

A

1.50

0.95

DC-13

A

0.55

Mechanical life
　　Mechanical life without load:0.3×10⁶times,operation frequency is 120 times/h.
　　Mechanical life with load:0.1×10⁶times under AC-15,0.1×10⁶times under DC-13,operation frequency is 300 times/h.

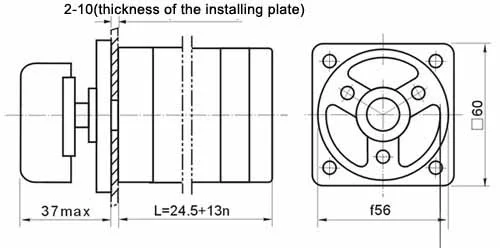

Dimensions

Re:n for number of layers

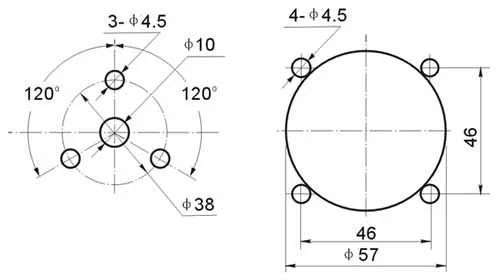

Installation
　　　optional
