LW26GS Pad-lock Rotary Switch

About the LW26GS Pad-lock Rotary Switch

The LW26GS Pad-lock Rotary Switch is part of the ELEHPD Rotary Switch range. Classification 1) LW26GS series Pad-lock type switches have four current ratings: 20A, 25A, 32A and 63A. LW26GS-20 has two escutcheon plate types, small escutcheon plate and large escutcheon plate. Others have only large escutcheon plate. Please check out the Dimensions and installation for details. The figure 1 represents small escutcheon plate, and 2 represents large escutcheon plate. Small escutcheon plate allows two pad-locks and large escutcheon plate allows three pad-locks. 2) LW26GS series Pad-lock switches have Quick-stop and Normal if classified by operation. Normal(LW26GS□/03) has Black escutcheon plate and Black handle. Quick-stop(LW26GS□/04) has Red escutcheon plate and Red handle. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right Rotary Switch

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

Introduction
　　LW26GS series Pad-lock Rotary switches are derivatives of LW26 series rotary switches. Installed in equipment where it requires a pad-lock to lock the switch in certain position. For instance, to fix the switch in ON position, to avoid the unauthorized personnel from operating the switch.
LW26GS series Pad-lock type switch complies with the GB 14048.3 and IEC 60947.3.

Classification
1) LW26GS series Pad-lock type switches have four current ratings: 20A, 25A, 32A and 63A. LW26GS-20 has two escutcheon plate types, small escutcheon plate and large escutcheon plate. Others have only large escutcheon plate. Please check out the Dimensions and installation for details.
The figure 1 represents small escutcheon plate, and 2 represents large escutcheon plate.
Small escutcheon plate allows two pad-locks and large escutcheon plate allows three pad-locks.
2) LW26GS series Pad-lock switches have Quick-stop and Normal if classified by operation.
Normal(LW26GS□/03) has Black escutcheon plate and Black handle.
Quick-stop(LW26GS□/04) has Red escutcheon plate and Red handle.

Technical parameters

Description		LW26GS-20	LW26GS-25	LW26GS-32	LW26GS-63
Rated working voltage Ue	V	440	440	440	440
Rated thermal current Ith	A	20	25	32	63
Rated working current Ie
AC-21A	A	20	25	32	63
AC-22A	A	20	25	32	63
AC-23A	A	15	22	30	57
Power P
AC-23A	KW	7.5	11	15	30
Operation
Non-load		8500	8500	8500	8500
Load		1500	1500	1500	1500
Total		10000	10000	10000	10000

Dimension and installation

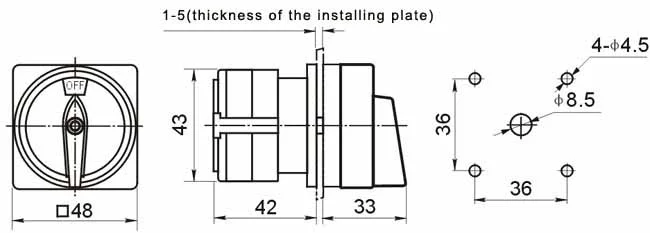

LW26GS-20/□-1 Small escutcheon plate

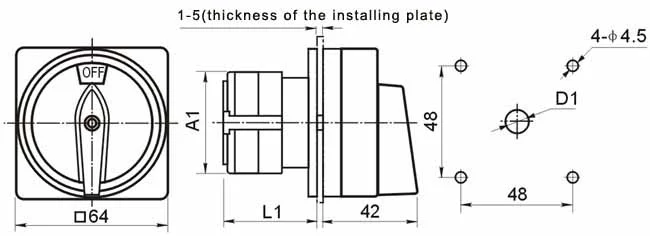

LW26GS-□/□-1 Large escutcheon plate

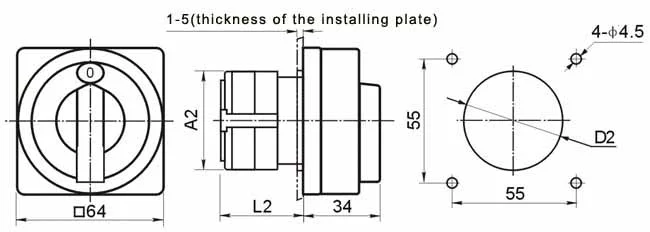

LW26GS-□/□-2

Deiscription	Dimension (mm)
A1	L1	D1	A2	L2	D2
LW26GS-20	43	43	Φ8.5	43	37.5	Φ45
LW26GS-25	45.2	51	Φ8.5	45.2	45	Φ47
LW26GS-32	58	55	Φ10
LW26GS-63	66	72.5	Φ10
