About the BY1 Surge Arrestor

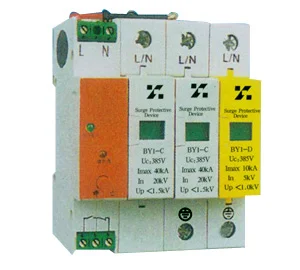

The BY1 Surge Arrestor is part of the ELEHPD Surge Arrester range. Usage And The Scope Of Application BY1 series surge protective device (SPD) is suitable for AC 50/60 Hz.380V and the following electric power system,such as TT,IT,TN-S,TN-C and TN-C-S.It is the product for protecting electric net shocked by the thunder or over voltage. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Consumer units and distribution boards in residential buildings
- Commercial and retail fit-outs where selective protection is required
- Industrial control panels and machine-builder assemblies
- Solar PV, EV charger and battery-storage sub-circuits
- OEM equipment where a DIN-rail protective device is specified
How to specify the right Surge Arrester
- Match the rated current to the circuit design current, then check the cable ampacity
- Pick the trip curve to the load: B for resistive/lighting, C for general mixed loads, D for motors and transformers
- Confirm the breaking capacity meets the prospective short-circuit current at the point of installation
- Verify the pole configuration (1P, 1P+N, 2P, 3P, 3P+N, 4P) against the system earthing arrangement
Specifications
![]()
![]()
| BY1-C/2-320-20 |
BY1-C/4-420-20 |
BY1-C/4-420-20B |
Usage And The Scope Of Application
BY1 series surge protective device (SPD) is suitable for AC 50/60 Hz.380V and the following electric power system ,such as TT,IT,TN-S,TN-C and TN-C-S.It is the product for protecting electric net shocked by the thunder or over voltage.
Technical Parameter
|
Type |
| BY1-C/□-140-15 |
BY1-C/□-275-20 |
BY1-C/□-320-20 |
BY1-C/□-385-20 |
BY1-C/□-420-20 |
BY1-C/□-550-20 |
| Maxi continuous operating volt. Uc～ |
140V |
275V |
320V |
385V |
420V |
550V |
| Volt protection level Up< |
0.8kV |
1.2kV |
1.5kV |
2.5kV |
2.5kV |
2.5kV |
| Nominal discharge current In(8/20μs)kA |
15 |
20 |
20 |
20 |
20 |
20 |
| Maxi discharge current Imax(8/20μs)kA |
40 |
40 |
40 |
40 |
40 |
40 |
| Response time ns |
<25 |
| Width mm |
18 |
| Colour |
grey |
| Protection level |
IP20 |
| Shell material |
enforce anti- flame PBT |
| Fuse Or Switch （A） |
25-32A |
| Connect ways |
L ,N |
2.5-35mm2 |
| Earthing |
4.0-45mm2 |
| Signal line |
1.5mm2 |
