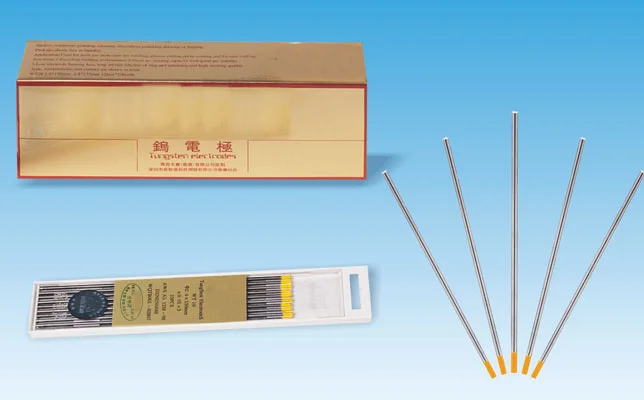

About the WL Tungsten Electrode
The WL Tungsten Electrode is part of the ELEHPD Tungsten Electrode range. Lanthanated Tungsten electrode (WL) Type & Application Type Dioxide Oxide impurity Power WL10 La2O3 0.80~1.20% <0.20% 2.6~2.7 WL15 La2O3 1.30~1.70% <... ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- TIG welding of stainless, aluminium and carbon steel
- Electrical testing, commissioning and fault finding
- Workshop fabrication and maintenance
- Field service kits for contractors
- OEM tool kits bundled with equipment
How to specify the right Tungsten Electrode
- Match the electrode type to the material: thoriated for steel, lanthanated as a general all-rounder, ceriated for thin sheet and low amperage
- Check the diameter against the welding current range
- Confirm the tester's safety category (CAT III / CAT IV) for the panel you work on
- Verify the included leads, probes and case in the kit
Specifications
Lanthanated Tungsten electrode (WL) 镧钨电极
Type & Application
|
Type |
Dioxide |
Oxide |
impurity |
Power |
|
WL10 |
La2O3 |
0.80~1.20% |
<0.20% |
2.6~2.7 |
|
WL15 |
La2O3 |
1.30~1.70% |
<0.20% |
2.8~3.0 |
|
WL20 |
La2O3 |
1.80~2.20% |
<0.20% |
2.8~3.2 |
diameter and toleranee |
|
diameter
(mm) |
tolerance
mm |
Length
mm |
|
Φ1.0-Φ2.4 |
±0.05 |
50~175 ±1 |
|
Φ3.0-Φ12.0 |
±0.1 | |
| Tungsten electrode are grond or polished ,and black rad,according to customer’s requement different diameters or lengths of electrods are providel |
![]()
Frequently asked questions about the WL Tungsten Electrode
Which tungsten electrode should I use?
2 % thoriated (red) is the traditional choice for steel and stainless. Lanthanated (gold) is the modern general-purpose replacement with easier arc starting. Ceriated (grey) suits thin material and low currents, and pure tungsten is for aluminium on AC.
What safety category do I need in a multimeter?
CAT III covers distribution-level work such as panel feeders and is the minimum for industrial electricians. CAT IV applies to the service entrance and outdoor supply, where transient energy is highest.
Are the test leads included?
Kit contents are listed in the specification table. Tell us if you need fused leads, a clamp adapter or a carry case and we will quote the bundle.
Do you supply cutting and grinding consumables too?
Send your requirement list and we will confirm which items in the catalogue match, or quote alternatives.
